UCF 211 SM
SQUARE FLANGED UNIT WITH A 55MM BORE - TR BRAND
Cast Iron Four Bolt Square Flanged Unit complete with full width bearing insert and end cap from our TR Range.
Also known as SF 55 + END CAP, SF55+ENDCAP, UCF211SM
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£214.67 (£257.60 inc VAT)
- 5 - 9£203.95 (£244.74 inc VAT)
- 10 +£193.20 (£231.84 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UCF 211 SM | |
| Reference | SF 55 + END CAP |
| Brand | Budget |
| Inside Diameter | 55mm |
| Bolt | M16 |
| Weight (KG) | 3.07 |

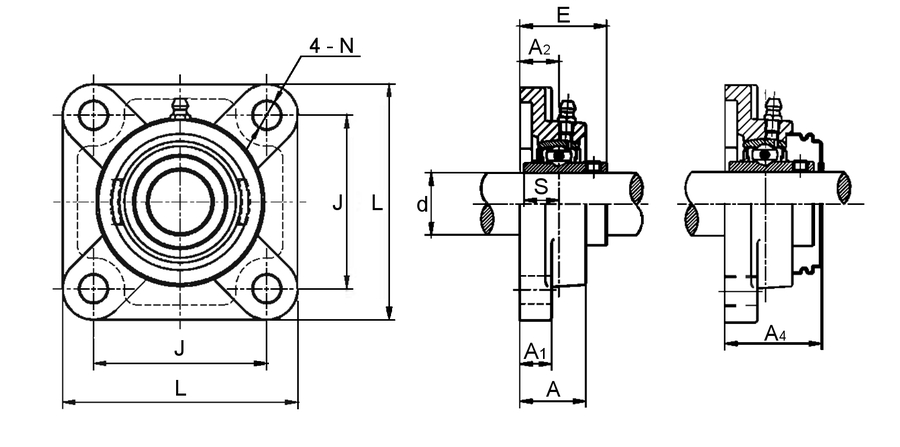

Schematic for UCF 211 SM | |
| A | 43mm |
| A1 | 18mm |
| A2 | 25mm |
| A4 | 64mm |
| E | 58.4mm |
| J | 130mm |
| KG | 3.07 |
| L | 162mm |
| N | 18mm |
| S | 22.2mm |
