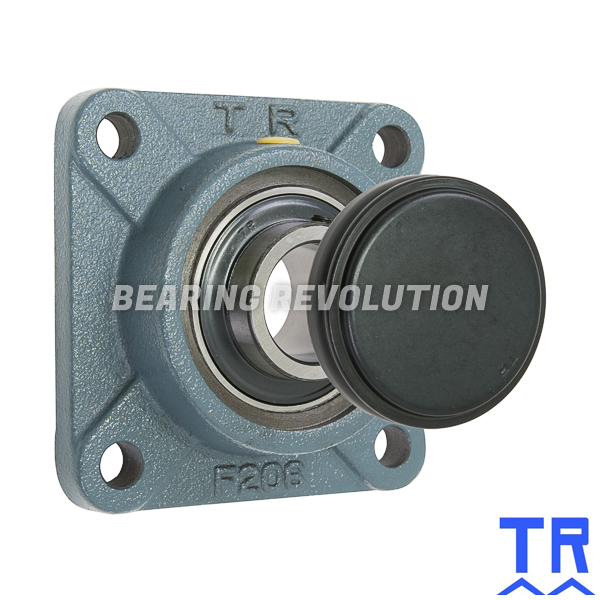

UCF 211-32 SM
SQUARE FLANGED UNIT WITH A 2 INCH BORE - TR BRAND
Cast Iron Four Bolt Square Flanged Unit complete with full width bearing insert and end cap from our TR Range.
Also known as SF 2 + END CAP, SF2+ENDCAP, UCF211-32SM
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£225.33 (£270.40 inc VAT)
- 5 - 9£214.06 (£256.87 inc VAT)
- 10 +£202.79 (£243.35 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UCF 211-32 SM | |
| Reference | SF 2 + END CAP |
| Brand | Budget |
| Inside Diameter | 2" |
| Bolt | M16 |
| Weight (KG) | 3.07 |

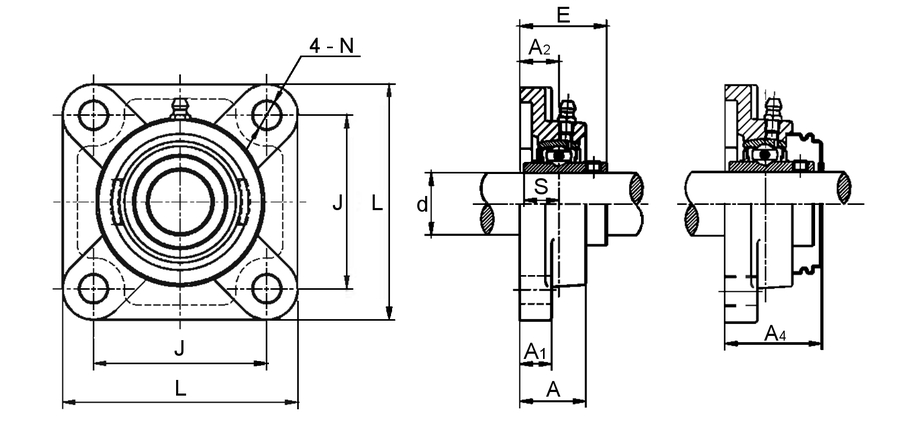

Schematic for UCF 211-32 SM | |
| A | 43mm |
| A1 | 18mm |
| A2 | 25mm |
| A4 | 64mm |
| E | 58.4mm |
| J | 130mm |
| KG | 3.07 |
| L | 162mm |
| N | 18mm |
| S | 22.2mm |
