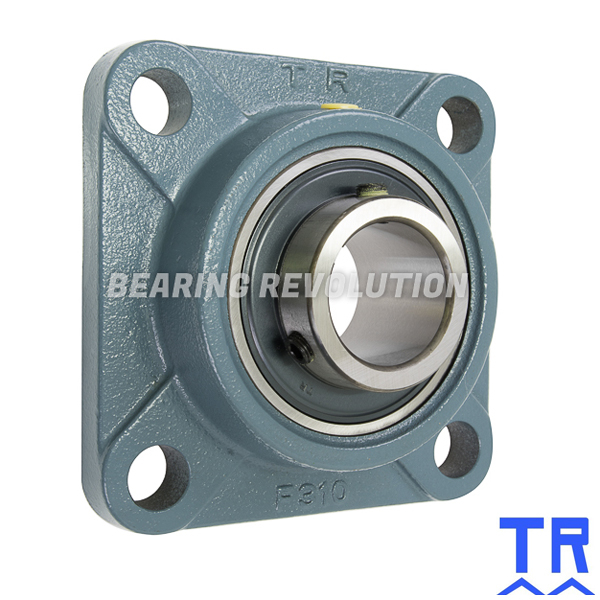

UCF 310
SQUARE FLANGED UNIT WITH A 50MM BORE - TR BRAND
Cast Iron Four Bolt Square Flanged Unit complete with full width bearing insert from our TR Range.
Also known as UCF310
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£132.00 (£158.40 inc VAT)
- 5 - 9£125.41 (£150.49 inc VAT)
- 10 +£118.81 (£142.57 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UCF 310 | |
| Reference | UCF 310 |
| Brand | Budget |
| Inside Diameter | 50mm |
| Bolt | M20 |
| Weight (KG) | 4.31 |

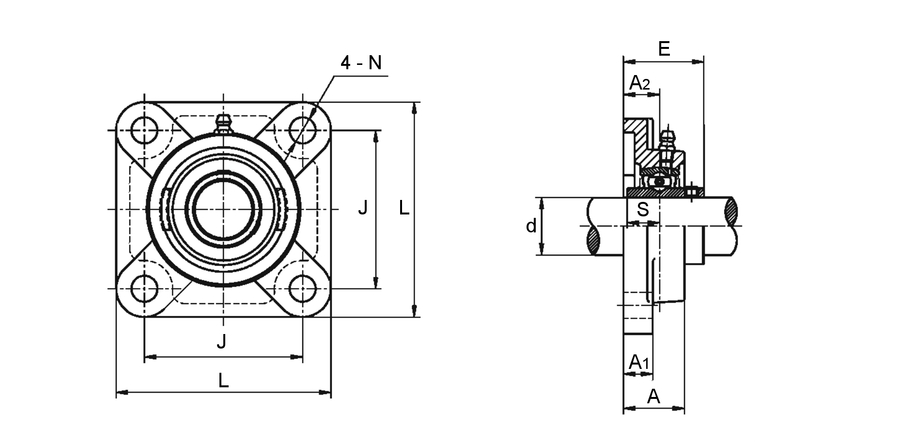

Schematic for UCF 310 | |
| A | 48mm |
| A1 | 20mm |
| A2 | 28mm |
| d | 50mm |
| E | 67mm |
| J | 132mm |
| KG | 4.31 |
| L | 175mm |
| N | 23mm |
| S | 22mm |
