UCFA 205 16

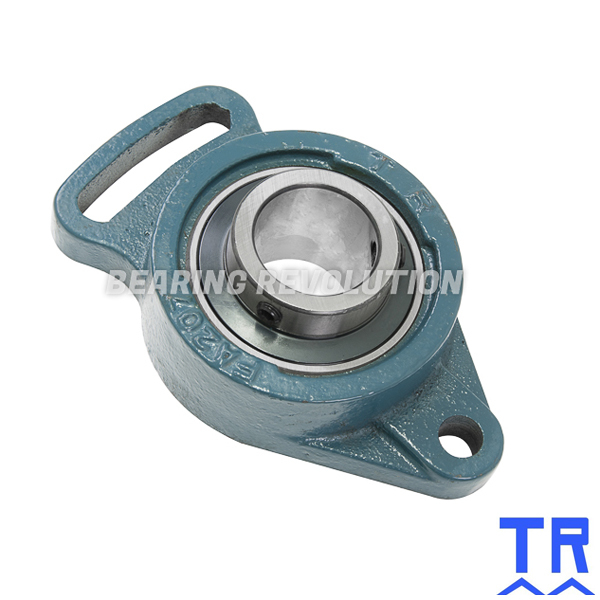

ADJUSTABLE FLANGE UNIT WITH A 1 INCH BORE - TR BRAND
Cast Iron Adjustable Flange Unit complete with full width bearing insert from our TR Range.
Also known as UCFA20516
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£50.09 (£60.11 inc VAT)
- 5 - 9£47.58 (£57.10 inc VAT)
- 10 +£45.08 (£54.10 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UCFA 205 16 | |
| Reference | UCFA 205 16 |
| Brand | Budget |
| Inside Diameter | 1" |
| Bolt | M10 |
| Weight (KG) | 0.65 |

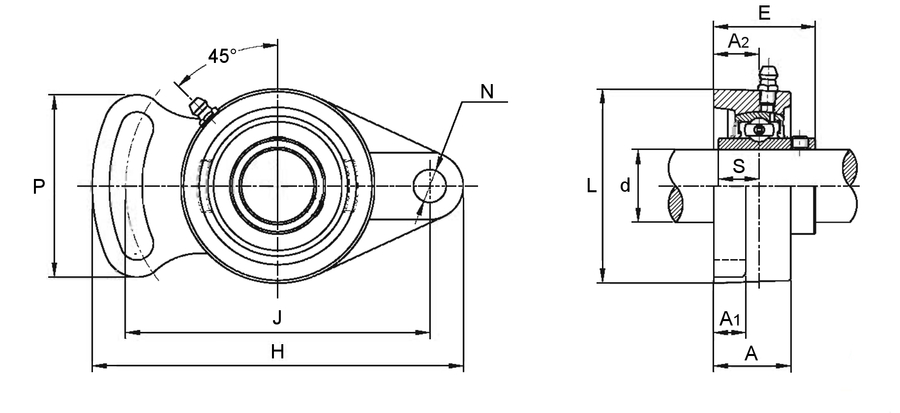

Schematic for UCFA 205 16 | |
| A | 27mm |
| A1 | 13mm |
| A2 | 16mm |
| d | 1" |
| E | 35.7mm |
| H | 122mm |
| J | 96mm |
| KG | 0.65 |
| L | 70mm |
| N | 12mm |
| P | 64mm |
| S | 14.3mm |
