UCFB 204 12

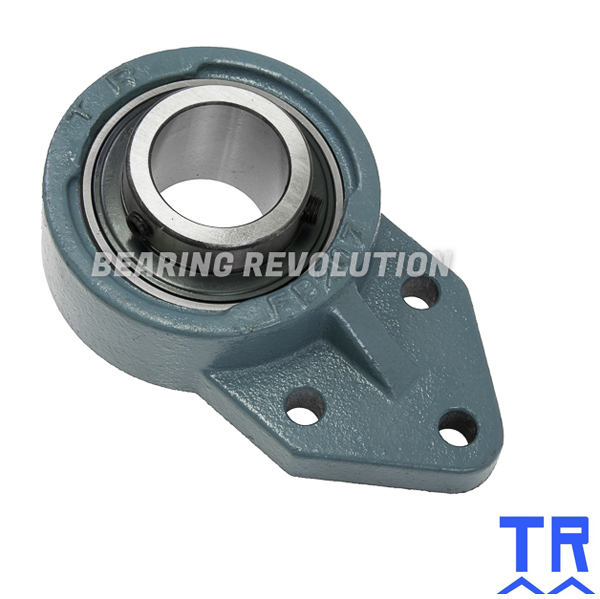

FLANGED BRACKET UNIT WITH A .3/4 INCH BORE - TR BRAND
Cast Iron Flanged Bracket Unit complete with full width bearing insert from our TR Range.
Also known as UCFB20412
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£41.56 (£49.87 inc VAT)
- 5 - 9£39.50 (£47.40 inc VAT)
- 10 +£37.42 (£44.90 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UCFB 204 12 | |
| Reference | UCFB 204 12 |
| Brand | Budget |
| Inside Diameter | .3/4" |
| Bolt | M8 |
| Weight (KG) | 0.47 |

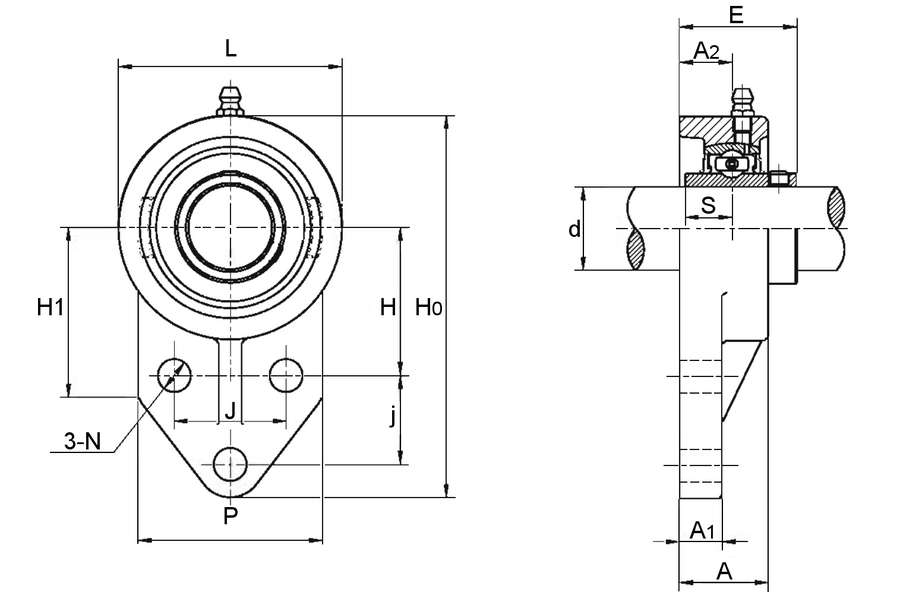

Schematic for UCFB 204 12 | |
| A | 25.5mm |
| A1 | 11mm |
| A2 | 15mm |
| d | .3/4" |
| E | 33.3mm |
| H | 42mm |
| H0 | 109mm |
| H1 | 52mm |
| j | 27mm |
| J | 32mm |
| KG | 12.7 |
| L | 60mm |
| N | 10mm |
| P | 52mm |
| S | 12.7mm |
