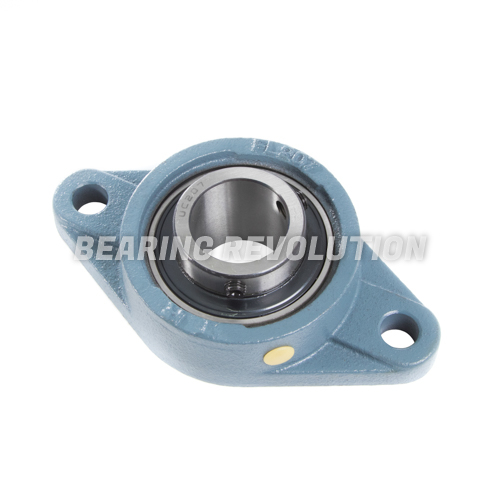

UCFL 213 40
OVAL FLANGE UNIT WITH A 2.1/2 INCH BORE - TR BRAND
Cast Iron Oval Flange Unit complete with full width bearing insert from our TR Range.
Also known as UCFL21340
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£177.14 (£212.57 inc VAT)
- 5 - 9£168.28 (£201.94 inc VAT)
- 10 +£159.43 (£191.32 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UCFL 213 40 | |
| Reference | UCFL 213 40 |
| Brand | Budget |
| Inside Diameter | 2.1/2" |
| Bolt | M20 |
| Weight (KG) | 4.68 |

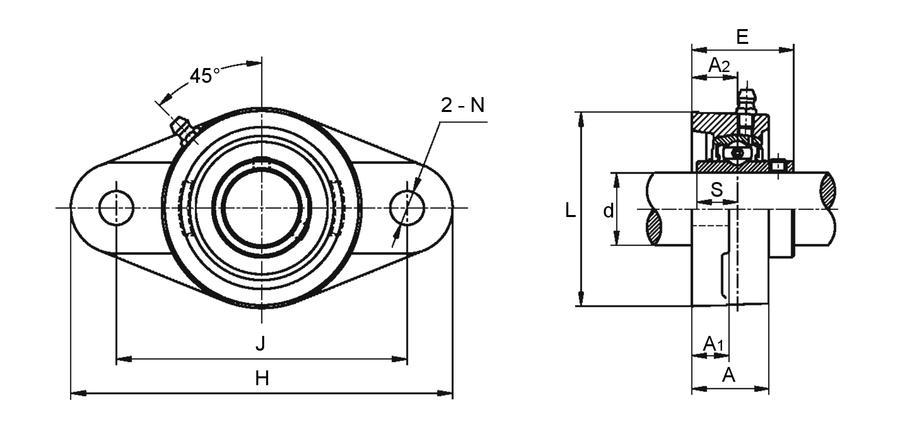

Schematic for UCFL 213 40 | |
| A | 50mm |
| A1 | 20mm |
| A2 | 30mm |
| A4 | 79mm |
| d | 2.1/2" |
| E | 69.7mm |
| H | 258mm |
| J | 210mm |
| KG | 4.68 |
| L | 155mm |
| N | 23mm |
| S | 25.4mm |
