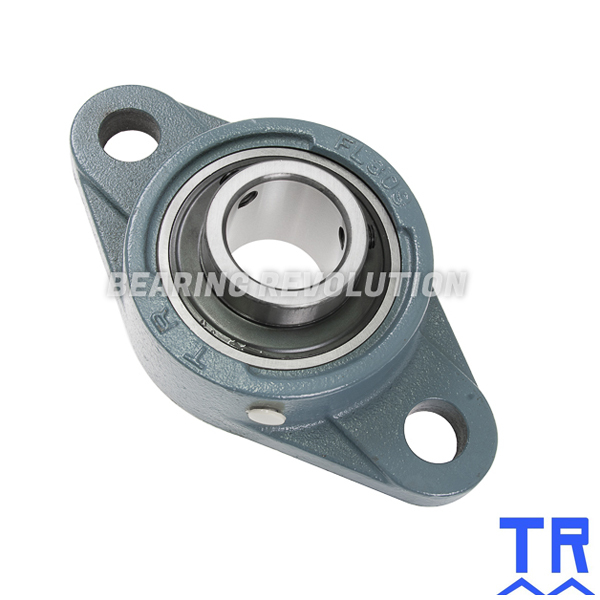

UCFL 306
OVAL FLANGE UNIT WITH A 30MM BORE - TR BRAND
Cast Iron Oval Flange Unit complete with full width bearing insert from our TR Range.
Also known as UCFL306
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£71.68 (£86.02 inc VAT)
- 5 - 9£68.09 (£81.71 inc VAT)
- 10 +£64.51 (£77.41 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UCFL 306 | |
| Reference | UCFL 306 |
| Brand | Budget |
| Inside Diameter | 30mm |
| Bolt | M20 |
| Weight (KG) | 1.32 |

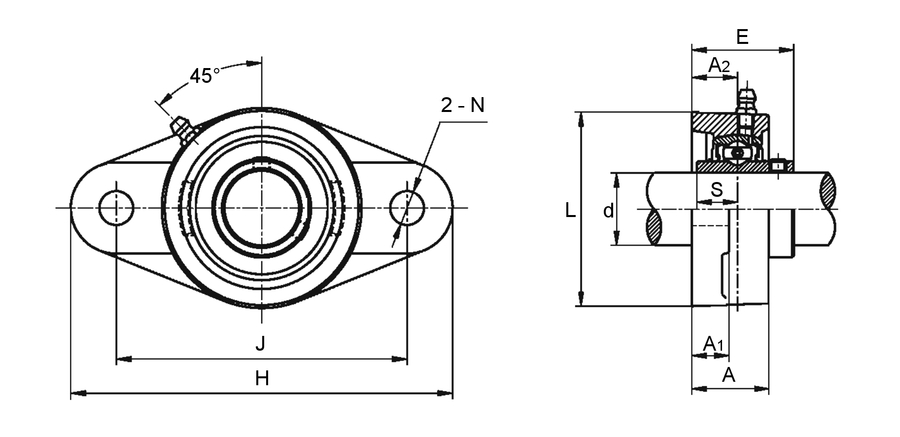

Schematic for UCFL 306 | |
| A | 32mm |
| A1 | 15mm |
| A2 | 18mm |
| d | 30mm |
| E | 44mm |
| H | 180mm |
| J | 134mm |
| KG | 1.32 |
| L | 90mm |
| N | 23mm |
| S | 17mm |
