UCFL 315
OVAL FLANGE UNIT WITH A 75MM BORE - TR BRAND

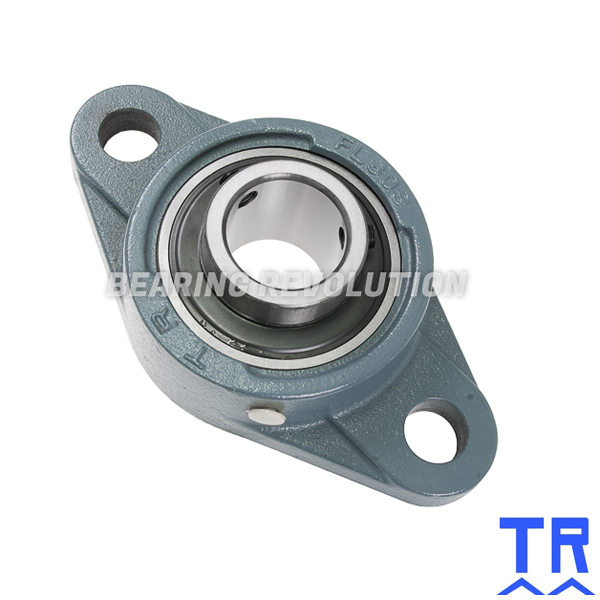

Cast Iron Oval Flange Unit complete with full width bearing insert from our TR Range.
Also known as UCFL315
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£456.77 (£548.12 inc VAT)
- 5 - 9£433.93 (£520.72 inc VAT)
- 10 +£411.09 (£493.31 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UCFL 315 | |
| Reference | UCFL 315 |
| Brand | Budget |
| Inside Diameter | 75mm |
| Bolt | M30 |
| Weight (KG) | 9.63 |

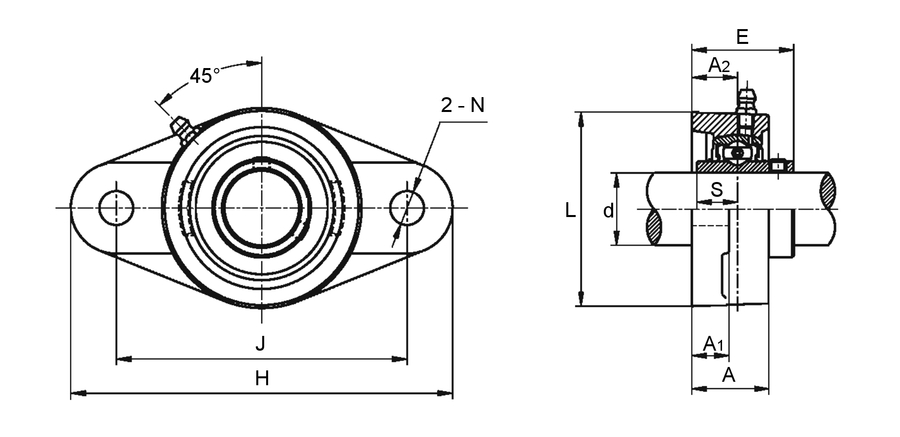

Schematic for UCFL 315 | |
| A | 66mm |
| A1 | 30mm |
| A2 | 39mm |
| d | 75mm |
| E | 89mm |
| H | 320mm |
| J | 260mm |
| KG | 9.63 |
| L | 195mm |
| N | 35mm |
| S | 32mm |
