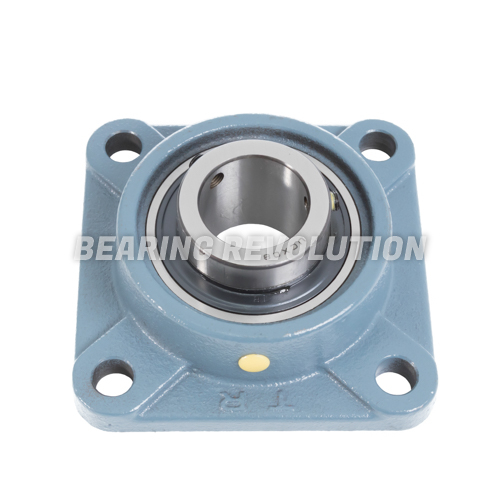

UCFX 10 30
SQUARE FLANGED UNIT WITH A 1.7/8 INCH BORE - TR BRAND
Heavy Duty Cast Iron Four Bolt Flanged Unit complete with full width bearing insert from our TR Range.
Also known as MSF 1.7/8, MSF1.7/8, UCFX1030
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£119.65 (£143.58 inc VAT)
- 5 - 9£113.66 (£136.39 inc VAT)
- 10 +£107.68 (£129.22 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UCFX 10 30 | |
| Reference | MSF 1.7/8 |
| Brand | Budget |
| Inside Diameter | 1.7/8" |
| Bolt | M16 |
| Weight (KG) | 3.52 |

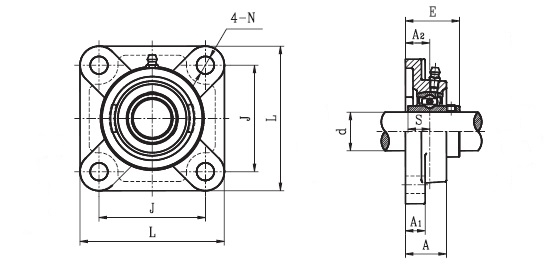

Schematic for UCFX 10 30 | |
| A | 44mm |
| A1 | 20mm |
| A2 | 26mm |
| d | 1.7/8" |
| E | 59.4mm |
| J | 130mm |
| KG | 3.52 |
| L | 162mm |
| N | 17mm |
| S | 22.2mm |
