UCP 205 SM
PILLOW BLOCK HOUSING UNIT WITH A 25MM BORE - TR BRAND

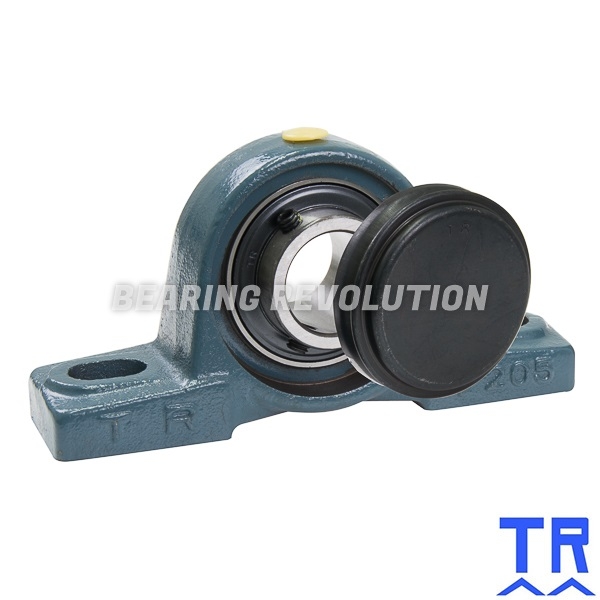

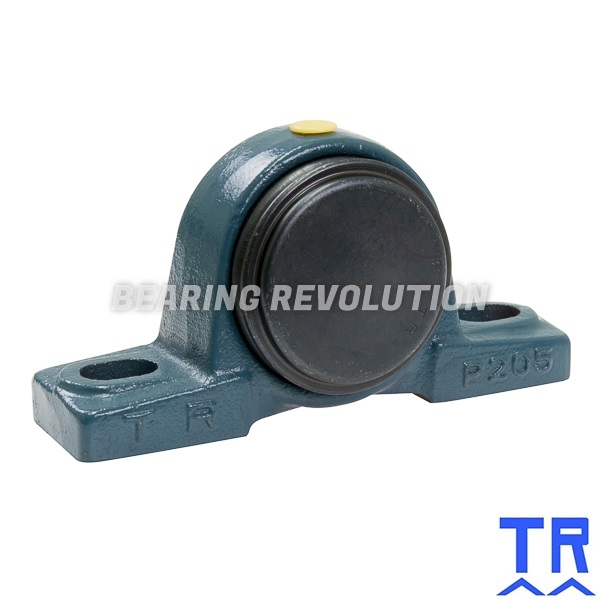

Cast Iron Two Bolt Pillow Block Housing Unit complete with full width bearing insert and end cap from our TR Range.
Also known as NP 25 + END CAP, NP25+ENDCAP, UCP205SM
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£78.19 (£93.83 inc VAT)
- 5 - 9£74.29 (£89.15 inc VAT)
- 10 +£70.37 (£84.44 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UCP 205 SM | |
| Reference | NP 25 + END CAP |
| Brand | Budget |
| Inside Diameter | 25mm |
| Bolt | M10 |
| Weight (KG) | 0.82 |

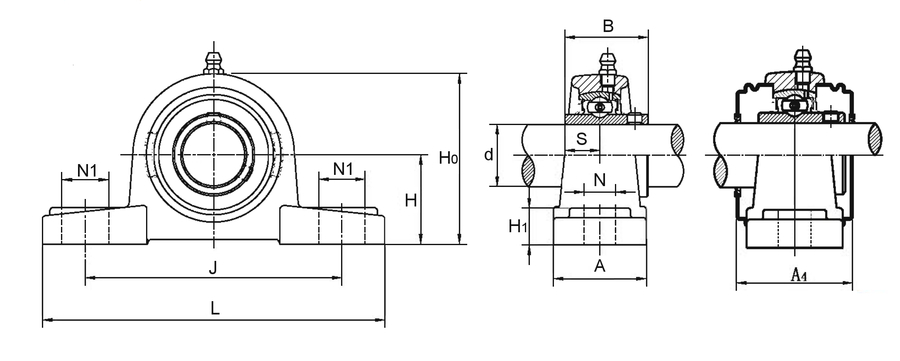

Schematic for UCP 205 SM | |
| A | 38mm |
| A4 | 48mm |
| B | 34mm |
| H | 36.5mm |
| H0 | 71mm |
| H1 | 15mm |
| J | 105mm |
| KG | 0.82 |
| L | 140mm |
| N | 13mm |
| N1 | 19mm |
| S | 14.3mm |
