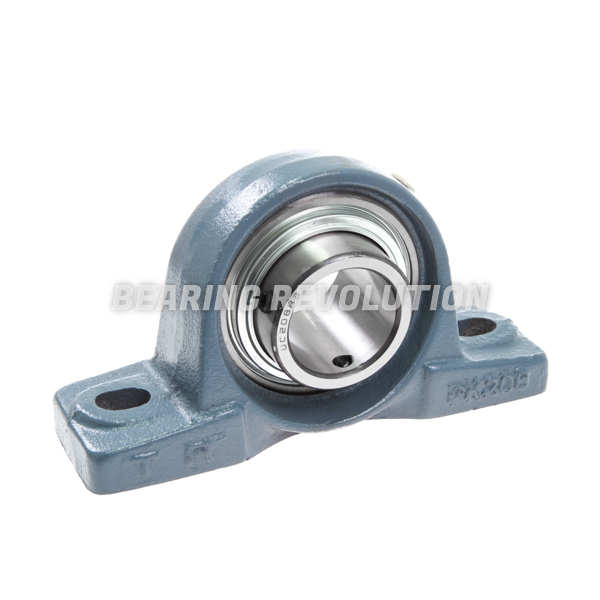

UCPK 205 R3
PILLOW BLOCK HOUSING UNIT WITH A 25MM BORE - TR BRAND
Cast Iron Two Bolt Pillow Block Housing Unit complete with triple sealed full width bearing insert from our TR Range.
Also known as TSL 25, TSL25, UCPK205R3
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£56.30 (£67.56 inc VAT)
- 5 - 9£53.48 (£64.18 inc VAT)
- 10 +£50.66 (£60.79 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UCPK 205 R3 | |
| Reference | TSL 25 |
| Brand | Budget |
| Inside Diameter | 25mm |
| Bolt | M10 |
| Seals / Shields | Triple Sealed |
| Weight (KG) | 0.93 |

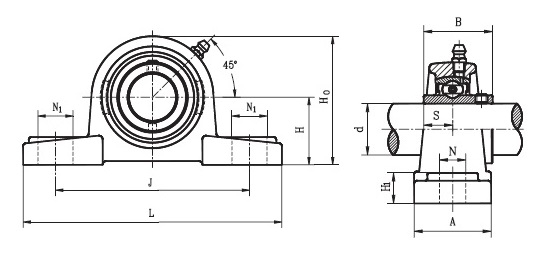

Schematic for UCPK 205 R3 | |
| A | 40mm |
| B | 34mm |
| H | 33.3mm |
| H0 | 66.5mm |
| H1 | 15mm |
| J | 105mm |
| KG | 0.93 |
| L | 140mm |
| N | 11mm |
| N1 | 14mm |
| S | 14.3mm |
