UCPK 211-32 R3

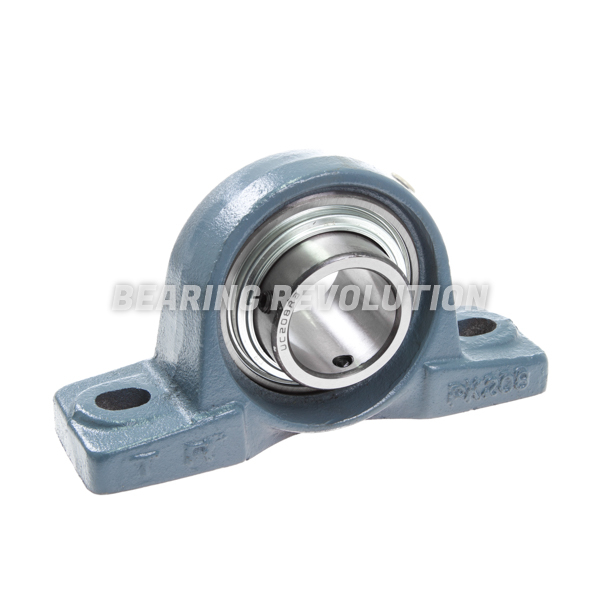

PILLOW BLOCK HOUSING UNIT WITH A 2 INCH BORE - TR BRAND
Cast Iron Two Bolt Pillow Block Housing Unit complete with triple sealed full width bearing insert from our TR Range.
Also known as TSL 2, TSL2, UCPK211-32R3
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£162.23 (£194.68 inc VAT)
- 5 - 9£154.11 (£184.93 inc VAT)
- 10 +£146.00 (£175.20 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UCPK 211-32 R3 | |
| Reference | TSL 2 |
| Brand | Budget |
| Inside Diameter | 2" |
| Bolt | M16 |
| Seals / Shields | Triple Sealed |
| Weight (KG) | 3.92 |

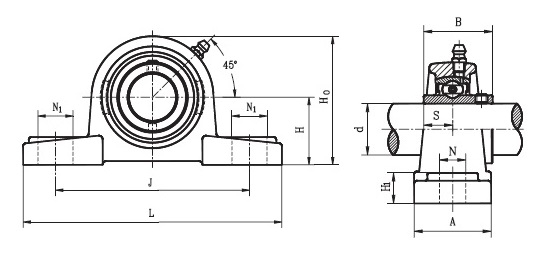

Schematic for UCPK 211-32 R3 | |
| A | 60mm |
| B | 55.6mm |
| H | 61.9mm |
| H0 | 123mm |
| H1 | 23mm |
| J | 181mm |
| KG | 3.92 |
| L | 232mm |
| N | 18mm |
| N1 | 24mm |
| S | 22.2mm |
