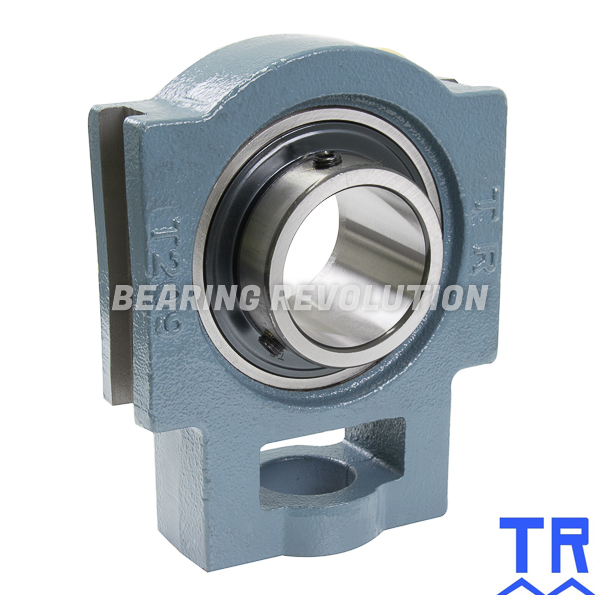

UCT 207
TAKE UP UNIT WITH A 35MM BORE - TR BRAND
Cast Iron Take Up Unit complete with full width bearing insert from our TR Range.
Also known as UCT207
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£50.40 (£60.48 inc VAT)
- 5 - 9£47.88 (£57.46 inc VAT)
- 10 +£45.36 (£54.43 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UCT 207 | |
| Reference | UCT 207 |
| Brand | Budget |
| Inside Diameter | 35mm |
| Weight (KG) | 1.61 |

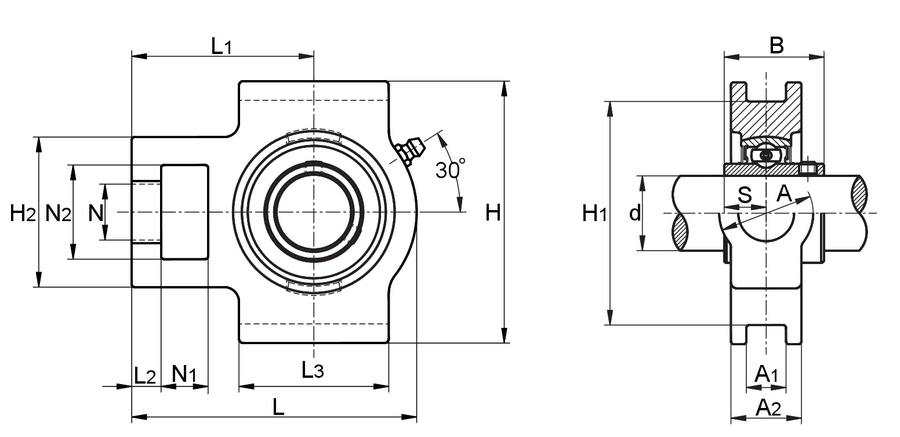

Schematic for UCT 207 | |
| A | 37mm |
| A1 | 12mm |
| A2 | 30mm |
| A4 | 59mm |
| B | 42.9mm |
| d | 35mm |
| H | 102mm |
| H1 | 89mm |
| H2 | 64mm |
| KG | 1.61 |
| L | 129mm |
| L1 | 78mm |
| L2 | 13mm |
| L3 | 64mm |
| N | 22mm |
| N1 | 16mm |
| N2 | 37mm |
| S | 17.5mm |
