UCT 215
TAKE UP UNIT WITH A 75MM BORE - TR BRAND

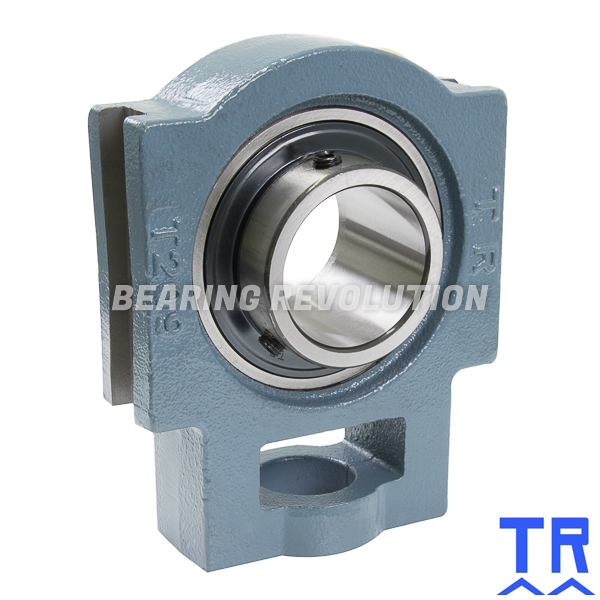

Cast Iron Take Up Unit complete with full width bearing insert from our TR Range.
Also known as UCT215
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£253.28 (£303.94 inc VAT)
- 5 - 9£240.61 (£288.73 inc VAT)
- 10 +£227.96 (£273.55 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UCT 215 | |
| Reference | UCT 215 |
| Brand | Budget |
| Inside Diameter | 75mm |
| Weight (KG) | 7.18 |

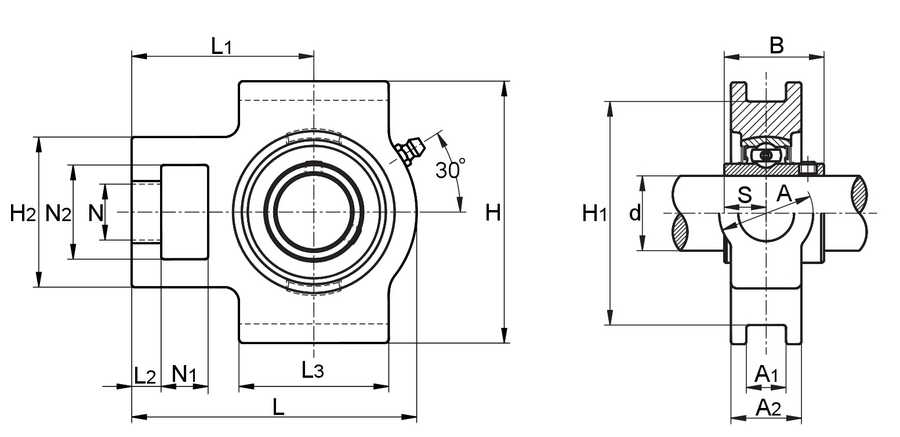

Schematic for UCT 215 | |
| A | 70mm |
| A1 | 26mm |
| A2 | 48mm |
| B | 77.8mm |
| d | 75mm |
| H | 167mm |
| H1 | 151mm |
| H2 | 111mm |
| KG | 7.18 |
| L | 232mm |
| L1 | 140mm |
| L2 | 21mm |
| L3 | 121mm |
| N | 41mm |
| N1 | 32mm |
| N2 | 70mm |
| S | 33.3mm |
