UK 313

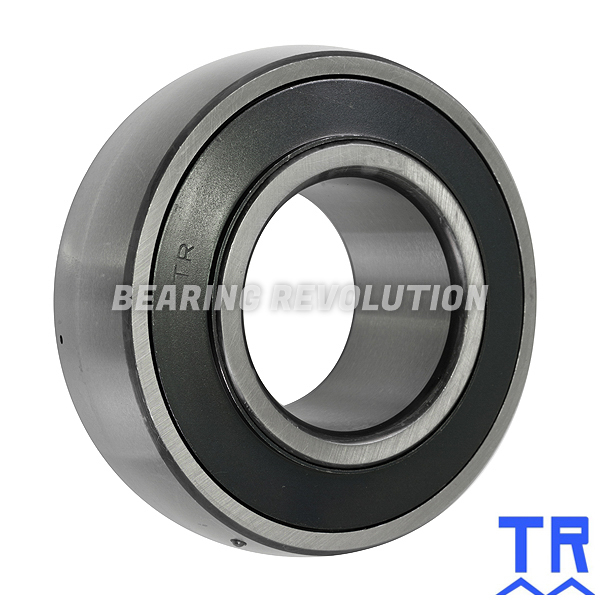

BEARING INSERT WITH A 65MM BORE - TR BRAND
Bearing Insert with tapered bore (taper 1:12) to allow fixing with an adaptor sleeve (please order separately), from our TR Range. ID 65mm, OD 140mm, width . These bearings can also be supplied complete with Housings in our Bearing Units section.
Also known as UK313
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£133.04 (£159.65 inc VAT)
- 5 - 9£126.39 (£151.67 inc VAT)
- 10 +£119.74 (£143.69 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UK 313 | |
| Reference | UK 313 |
| Brand | Budget |
| Inside Diameter | 65mm |
| Outside Diameter | 140mm |
| Dyn | 93860 |
| Stat | 60500 |
| Weight (KG) | 2.48 |

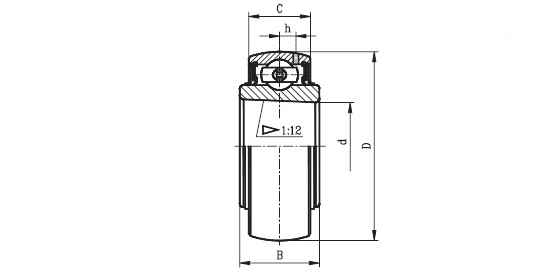

Schematic for UK 313 | |
| B | 49mm |
| C | 38mm |
| d | 65mm |
| D | 140mm |
| h | 12.1mm |
| KG | 2.48 |
