WS 81130, AXIAL BEARING WASHER WITH A 150MM BORE - PREMIUM RANGE
WS Series Housing Locating Washer with ground bore which can be used within the thrust assembly number 81130, from our Premium Range. 150mm ID, 188mm OD, 9.5mm Width.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1+£173.80 (£208.56 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for WS 81130, Axial Bearing Washer with a 150mm bore - Premium Range | |
| Reference | WS 81130 |
| Brand | Premium |
| Inside Diameter | 150mm |
| Outside Diameter | 188mm |
| Width | 9.5mm |
| Weight (KG) | 0.83 |

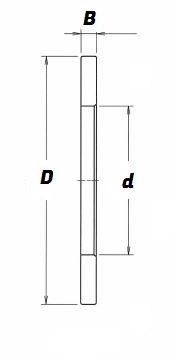

Schematic for WS 81130, Axial Bearing Washer with a 150mm bore - Premium Range | |
| B | 9.5mm |
| d | 150mm |
| D | 188mm |
