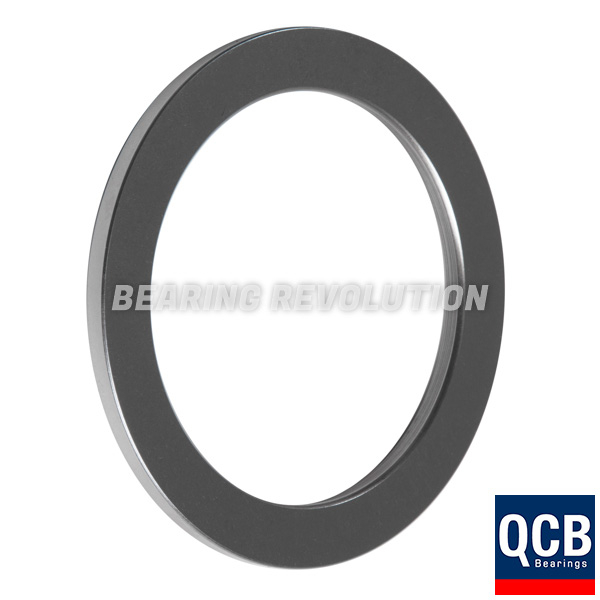

WS 81222, AXIAL BEARING WASHER WITH A 110MM BORE - SELECT RANGE
WS Series Housing Locating Washer with ground bore which can be used within the thrust assembly number 81222, from our Select Range. 110mm ID, 160mm OD, 11.5mm Width.
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1 - 4£93.90 (£112.68 inc VAT)
- 5 - 9£89.21 (£107.05 inc VAT)
- 10 +£84.50 (£101.40 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for WS 81222, Axial Bearing Washer with a 110mm bore - Select Range | |
| Reference | WS 81222 |
| Brand | Select |
| Inside Diameter | 110mm |
| Outside Diameter | 160mm |
| Width | 11.5mm |
| Weight (KG) | 0.88 |

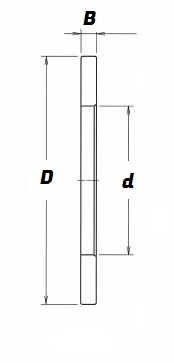

Schematic for WS 81222, Axial Bearing Washer with a 110mm bore - Select Range | |
| B | 11.5mm |
| d | 110mm |
| D | 160mm |
