08B-2 100 P/W, PLATEWHEEL

BR Stock No. U-08B-2 100 P/W | Brand: BR | Mfr. Part No. 08B-2 100 P/W

Duplex, .1/2" pitch, 100 tooth Platewheel. Can be you used with 08B-2 chain.

Also known as CD 09 100, X208Z100, PWH08B2100, 4DR100PW

Specifications for 08B-2 100 P/W, Platewheel
Reference	08B-2 100 P/W
Brand	BR
Number of Teeth	100
Pitch (P) Inch	.1/2"" (12.7mm)
Pitch (P) mm	12.7mm
Type	Duplex
Weight (KG)	20.38

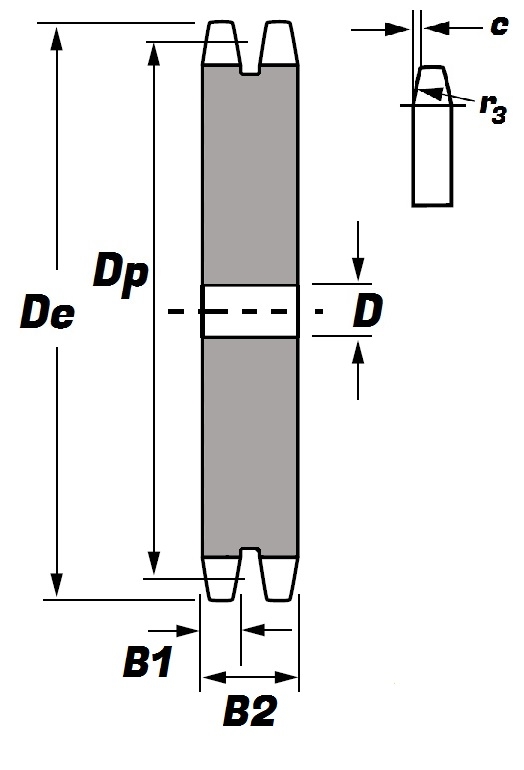

Schematic for 08B-2 100 P/W, Platewheel
b	7mm
B1	7.2mm
B2	21mm
c	1.3mm
D	25mm
De	410.3mm
Dp	404.31mm
r3	13mm
