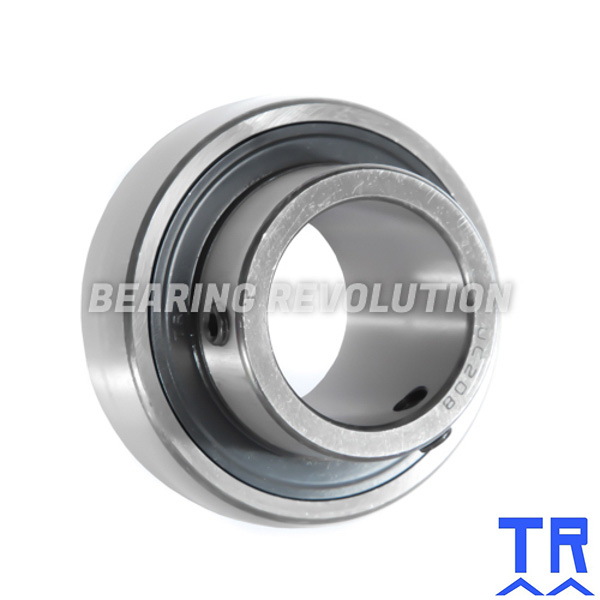

1020 20 ( UC 204 ) - BEARING INSERT WITH A 20MM BORE - TR BRAND
Full Width 'UC type' Bearing Insert complete with grub screws to allow tightening against the shaft, from our TR Range. 20mm ID, 47mm OD, 31mm width. These bearings can also be supplied complete with Housings in our Bearing Units section.
- UnitsPer unit
- 1 - 4£8.40 (£10.08 inc VAT)
- 5 - 9£7.98 (£9.58 inc VAT)
- 10 +£7.56 (£9.07 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1020 20 ( UC 204 ) - Bearing Insert with a 20mm bore - TR Brand | |
| Reference | 1020 20 |
| Brand | TR |
| Inside Diameter | 20mm |
| Outside Diameter | 47mm |
| Width | 16mm |
| Dyn | 12800 |
| Stat | 6650 |
| Type | Grub Screw Lock |
| Weight (KG) | 0.16 |

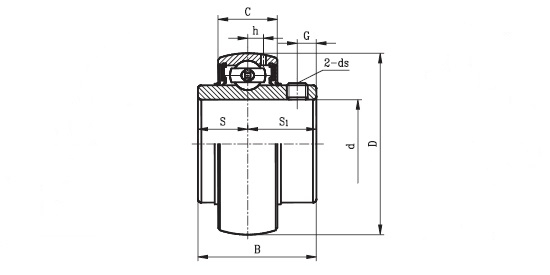

Schematic for 1020 20 ( UC 204 ) - Bearing Insert with a 20mm bore - TR Brand | |
| B | 31mm |
| C | 16mm |
| D | 47mm |
| ds | M6x1 |
| G | 4.7mm |
| h | 4.4mm |
| KG | 0.16 |
| S | 12.7mm |
| S1 | 18.3mm |
