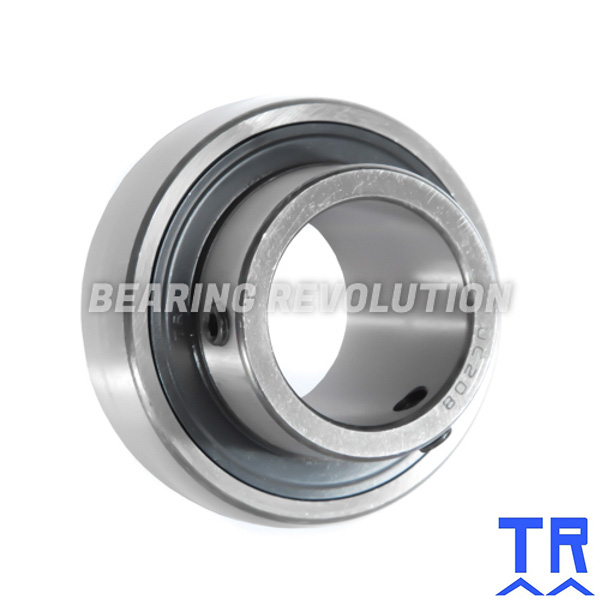

1030 30 ( UC 206 ) - BEARING INSERT WITH A 30MM BORE - TR BRAND
Full Width 'UC type' Bearing Insert complete with grub screws to allow tightening against the shaft, from our TR Range. 30mm ID, 62mm OD, 38.1mm width. These bearings can also be supplied complete with Housings in our Bearing Units section.
- UnitsPer unit
- 1 - 4£11.41 (£13.69 inc VAT)
- 5 - 9£10.83 (£13.00 inc VAT)
- 10 +£10.27 (£12.32 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1030 30 ( UC 206 ) - Bearing Insert with a 30mm bore - TR Brand | |
| Reference | 1030 30 |
| Brand | TR |
| Inside Diameter | 30mm |
| Outside Diameter | 62mm |
| Width | 19mm |
| Dyn | 19500 |
| Stat | 11200 |
| Type | Grub Screw Lock |
| Weight (KG) | 0.31 |

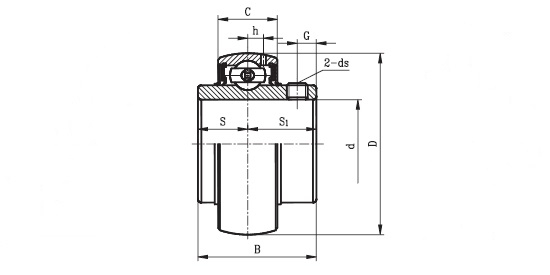

Schematic for 1030 30 ( UC 206 ) - Bearing Insert with a 30mm bore - TR Brand | |
| B | 38.1mm |
| C | 19mm |
| D | 62mm |
| ds | M6x1 |
| G | 5.5mm |
| h | 5mm |
| KG | 0.31 |
| S | 15.9mm |
| S1 | 22.2mm |
