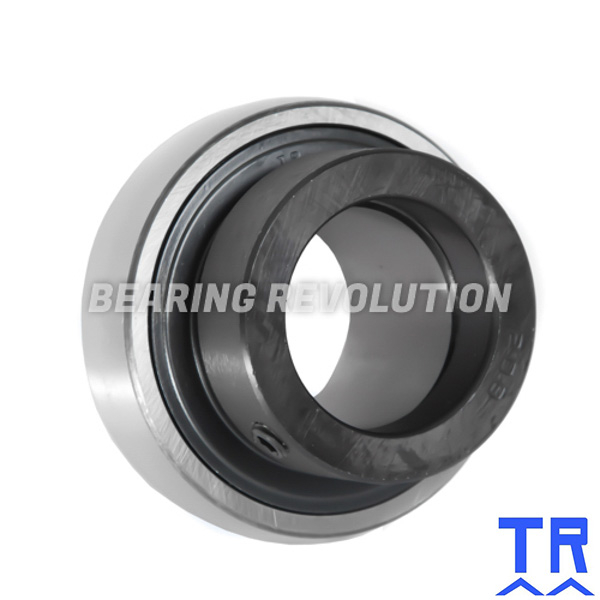

1035 1.3/8 DEC ( NA 207 22 ) - BEARING INSERT WITH A 1.3/8 INCH BORE - TR BRAND
Full Width Bearing Insert complete with Eccentric Collar to allow tightening against the shaft, from our TR Range. 1.3/8" ID, 72mm OD, 37.6mm width. These bearings can also be supplied complete with Housings in our Bearing Units section.
- UnitsPer unit
- 1 - 4£18.81 (£22.57 inc VAT)
- 5 - 9£17.87 (£21.44 inc VAT)
- 10 +£16.94 (£20.33 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1035 1.3/8 DEC ( NA 207 22 ) - Bearing Insert with a 1.3/8 inch bore - TR Brand | |
| Reference | 1035 1.3/8 DEC |
| Brand | TR |
| Inside Diameter | 1.3/8" |
| Outside Diameter | 72mm |
| Width | 20mm |
| Dyn | 25700 |
| Stat | 15200 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.55 |

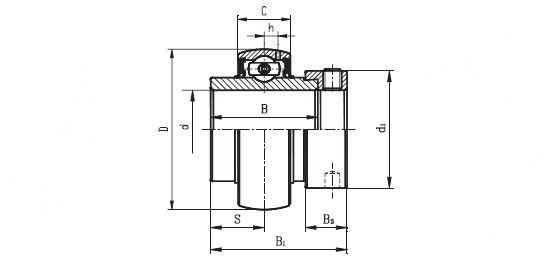

Schematic for 1035 1.3/8 DEC ( NA 207 22 ) - Bearing Insert with a 1.3/8 inch bore - TR Brand | |
| B | 37.6mm |
| B1 | 51.1mm |
| B3 | 17.5mm |
| C | 20mm |
| D | 72mm |
| d1 | 51.1mm |
| h | 5.8mm |
| KG | 0.55 |
| S | 18.8mm |
