CSB 208 24
BEARING INSERT WITH A 1.1/2 INCH BORE - TR BRAND
Flat Back Bearing Insert with Parallel Outer and grub screws to allow tightening against the shaft, from our TR Range. ID 1.1/2", OD 80mm, width 18mm. These bearings can also be supplied complete with Housings in our Bearing Units section.
Also known as 1340 1.1/2, 13401.1/2, CSB20824
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£26.67 (£32.00 inc VAT)
- 5 - 9£25.34 (£30.41 inc VAT)
- 10 +£24.01 (£28.81 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for CSB 208 24 | |
| Reference | 1340 1.1/2 |
| Brand | Budget |
| Inside Diameter | 1.1/2" |
| Outside Diameter | 80mm |
| Width | 18mm |
| Dyn | 29600 |
| Stat | 18200 |
| Type | Grub Screw Lock |
| Weight (KG) | 0.51 |

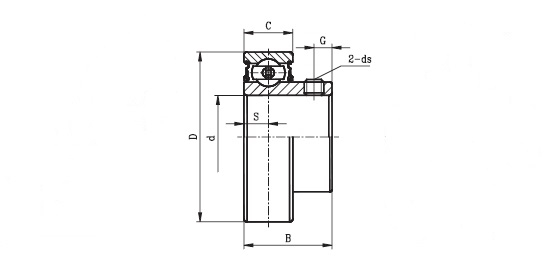

Schematic for CSB 208 24 | |
| B | 34mm |
| C | 18mm |
| d | 1.1/2" |
| D | 80mm |
| ds | M8x1 |
| G | 7mm |
| h | 6.2mm |
| KG | 0.51 |
| S | 9mm |
