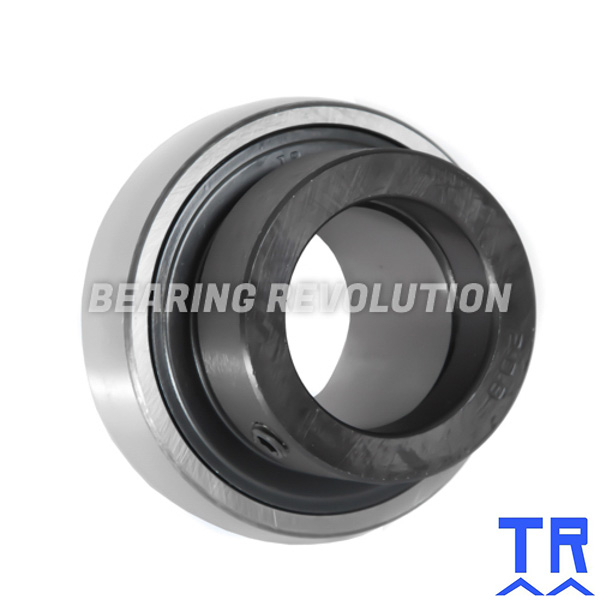

1040 40 DEC ( NA 208 ) - BEARING INSERT WITH A 40MM BORE - TR BRAND
Full Width Bearing Insert complete with Eccentric Collar to allow tightening against the shaft, from our TR Range. 40mm ID, 80mm OD, 42.8mm width. These bearings can also be supplied complete with Housings in our Bearing Units section.
- UnitsPer unit
- 1 - 4£21.91 (£26.29 inc VAT)
- 5 - 9£20.81 (£24.97 inc VAT)
- 10 +£19.72 (£23.66 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1040 40 DEC ( NA 208 ) - Bearing Insert with a 40mm bore - TR Brand | |
| Reference | 1040 40 DEC |
| Brand | TR |
| Inside Diameter | 40mm |
| Outside Diameter | 80mm |
| Width | 21mm |
| Dyn | 29600 |
| Stat | 18200 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.74 |

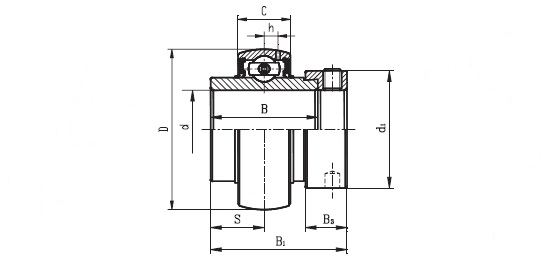

Schematic for 1040 40 DEC ( NA 208 ) - Bearing Insert with a 40mm bore - TR Brand | |
| B | 42.8mm |
| B1 | 56.3mm |
| B3 | 18.3mm |
| C | 21mm |
| D | 80mm |
| d1 | 58mm |
| h | 6.3mm |
| KG | 0.74 |
| S | 21.4mm |
