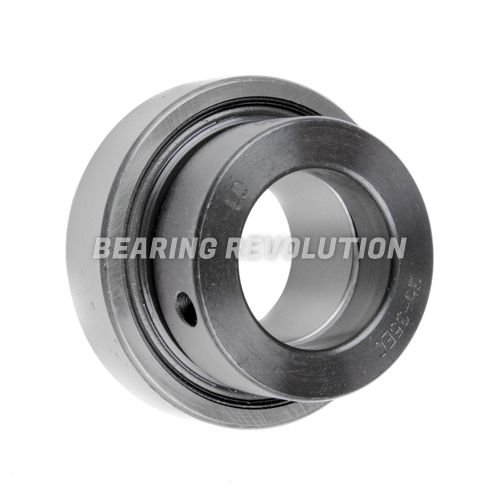

1345 45 EC ( CSA 209 ) - 'PREMIUM' BEARING INSERT WITH A 45MM BORE.
Flat Back Bearing Insert with Parallel Outer and Eccentric Collar lock to allow tightening against the shaft, from our Premium Range. ID 45mm, OD 85mm, width 19mm.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£52.78 (£63.34 inc VAT)
- 5 +£50.16 (£60.19 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1345 45 EC ( CSA 209 ) - 'Premium' Bearing Insert with a 45mm bore. | |
| Reference | 1345 45 EC |
| Brand | Premium |
| Inside Diameter | 45mm |
| Outside Diameter | 85mm |
| Width | 19mm |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.87 |

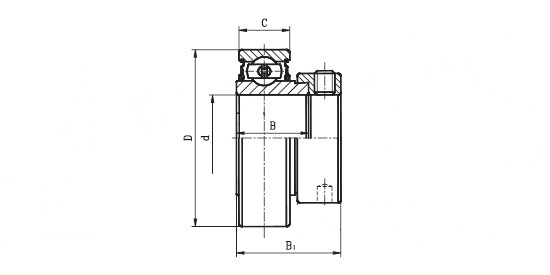

Schematic for 1345 45 EC ( CSA 209 ) - 'Premium' Bearing Insert with a 45mm bore. | |
| B | 43.64mm |
| C | 19mm |
| d | 45mm |
| D | 85mm |
