1040 40 DEC ( NA 208 ) - 'PREMIUM' BEARING INSERT WITH A 40MM BORE.
Full Width Bearing Insert complete with Eccentric Collar to allow tightening against the shaft, from our Premium Range. ID 40mm, OD 80mm, width 18mm. These bearings can also be supplied complete with Housings in our Bearing Units section.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£59.82 (£71.78 inc VAT)
- 5 +£56.82 (£68.18 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1040 40 DEC ( NA 208 ) - 'Premium' Bearing Insert with a 40mm bore. | |
| Reference | 1040 40 DEC |
| Brand | Premium |
| Inside Diameter | 40mm |
| Outside Diameter | 80mm |
| Width | 18mm |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.64 |

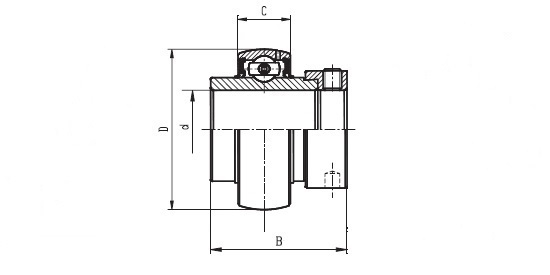

Schematic for 1040 40 DEC ( NA 208 ) - 'Premium' Bearing Insert with a 40mm bore. | |
| B | 56.34mm |
| C | 18mm |
| d | 40mm |
| D | 80mm |
