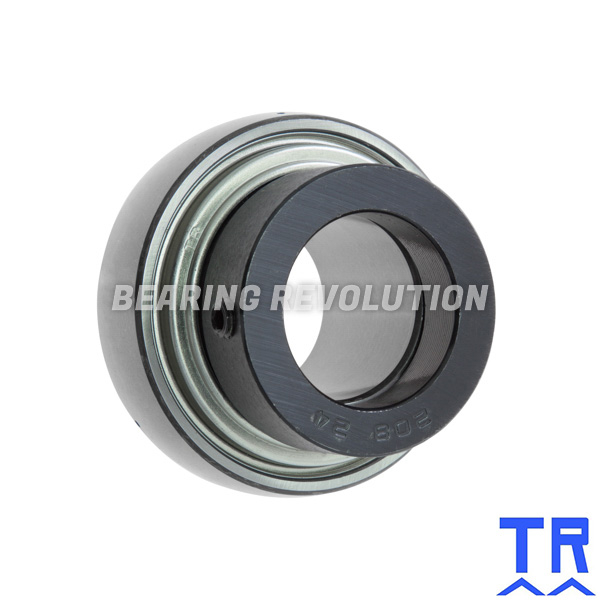

T 1040 1.1/2 DEC ( NA 208 24 R3 ) - BEARING INSERT WITH A 1.1/2 INCH BORE - TR BRAND

BR Stock No. B-T 1040 1.1/2 DEC | Brand: TR | Mfr. Part No. T 1040 1.1/2 DEC

Bearing Insert a triple lip seal fitted on both sides. ID 1.1/2", OD 80mm, width 21mm. This triple seal consists of a metal cap and synthetic rubber seal which are baked together to form a single seal. The Lip layers are of a triple construction so outside matters such as dust and water are shut out. These bearings can also be supplied complete with Housings in our Bearing Units section or can be available on request.

UnitsPer unit
1 - 4£27.58 (£33.10 inc VAT)
5 - 9£26.20 (£31.44 inc VAT)
10 +£24.82 (£29.78 inc VAT)
Bulk Order PricesENQUIRE

Specifications for T 1040 1.1/2 DEC ( NA 208 24 R3 ) - Bearing Insert with a 1.1/2 inch bore - TR Brand
Reference	T 1040 1.1/2 DEC
Brand	TR
Inside Diameter	1.1/2"
Outside Diameter	80mm
Width	21mm
Dyn	29600
Stat	18200
Type	Eccentric Collar Lock
Weight (KG)	0.79

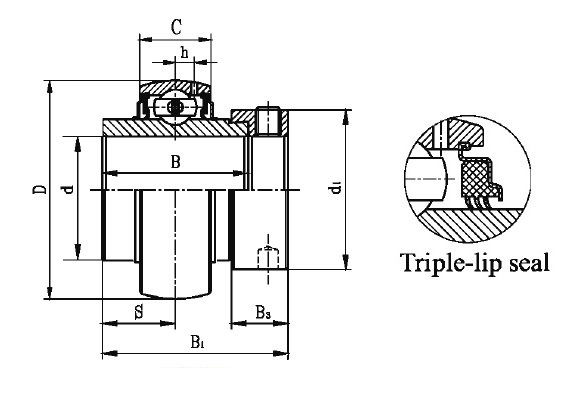

Schematic for T 1040 1.1/2 DEC ( NA 208 24 R3 ) - Bearing Insert with a 1.1/2 inch bore - TR Brand
B	42.8mm
B1	56.3mm
B3	18.3mm
C	21mm
D	80mm
d1	58mm
h	6.3mm
KG	0.79
S	21.4mm
