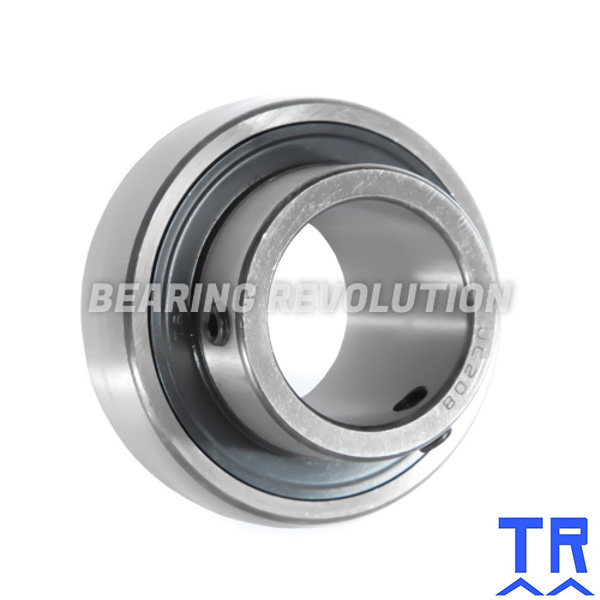

Please note photos are for illustration purposes only

1055 2.3/16 ( UC 211 35 ) - BEARING INSERT WITH A 2.3/16 INCH BORE - TR BRAND

BR Stock No. B-1055 2.3/16 | Brand: TR | Mfr. Part No. 1055 2.3/16

Full Width 'UC type' Bearing Insert complete with grub screws to allow tightening against the shaft, from our TR Range. 2.3/16" ID, 100mm OD, 55.6mm width. These bearings can also be supplied complete with Housings in our Bearing Units section.

UnitsPer unit
1 - 4£28.40 (£34.08 inc VAT)
5 - 9£26.99 (£32.39 inc VAT)
10 +£25.57 (£30.68 inc VAT)
Bulk Order PricesENQUIRE

Specifications for 1055 2.3/16 ( UC 211 35 ) - Bearing Insert with a 2.3/16 inch bore - TR Brand
Reference	1055 2.3/16
Brand	TR
Inside Diameter	2.3/16"
Outside Diameter	100mm
Width	25mm
Dyn	43550
Stat	29200
Type	Grub Screw Lock
Weight (KG)	1.02

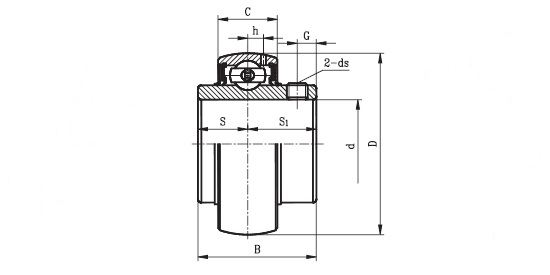

Schematic for 1055 2.3/16 ( UC 211 35 ) - Bearing Insert with a 2.3/16 inch bore - TR Brand
B	55.6mm
C	25mm
D	100mm
ds	M10x1.25
G	9mm
h	7.2mm
KG	1.02
S	22.2mm
S1	33.4mm
