SUC 206 19, STAINLESS STEEL BEARING INSERT WITH A 1.3/16 INCH BORE - SELECT RANGE

Name: SUC 206 19, Stainless Steel Bearing Insert with a 1.3/16 inch bore - Select Range
Brand: Select
Price: 54.98 GBP
Availability: InStock

BR Stock No. S-SUC 206 19 | Brand: Select | Mfr. Part No. SUC 206 19

Full width Stainless Steel Bearing Insert filled with Food Grade Grease from our Select range. These can be used in both our Stainless Steel Units and Thermoplastic Housings. 1.3/16" ID, 62mm OD, 38.1mm width. Also known as

Also known as 1030 1.3/16 S/S 6

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£45.82 (£54.98 inc VAT)
5 - 9£43.52 (£52.22 inc VAT)
10 +£41.23 (£49.48 inc VAT)
Bulk Order PricesENQUIRE

SUC 206 19, Stainless Steel Bearing Insert with a 1.3/16 inch bore - Select Range Schematic

Specifications for SUC 206 19, Stainless Steel Bearing Insert with a 1.3/16 inch bore - Select Range
Reference	SUC 206 19
Brand	Select
Inside Diameter	1.3/16"
Outside Diameter	62mm
Width	38.1mm
Dyn	1520
Stat	1020
Weight (KG)	0.32

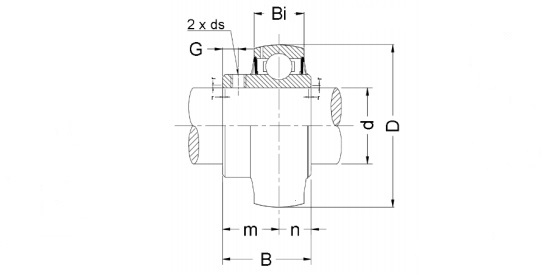

Schematic for SUC 206 19, Stainless Steel Bearing Insert with a 1.3/16 inch bore - Select Range
B	38.1mm
Bi	38.1mm
d	1.3/16"
D	62mm
ds	M6 x 0.75
G	5mm
KG	0.32
m	22.2mm
n	15.9mm
r (Min)	1.5mm
