1130 30 C ( ER 206 ) - BEARING INSERT WITH A 30MM BORE - TR BRAND
Full Width Bearing Insert with Parallel Outer and Snap Ring complete with grub screws to allow tightening against the shaft, from our TR Range.30mm ID, 62mm OD, 38.1mm width.
- UnitsPer unit
- 1 - 4£12.55 (£15.06 inc VAT)
- 5 - 9£11.92 (£14.30 inc VAT)
- 10 +£11.29 (£13.55 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1130 30 C ( ER 206 ) - Bearing Insert with a 30mm bore - TR Brand | |
| Reference | 1130 30 C |
| Brand | TR |
| Inside Diameter | 30mm |
| Outside Diameter | 62mm |
| Width | 22.2mm |
| Dyn | 19500 |
| Stat | 11200 |
| Type | Grub Screw Lock |
| Weight (KG) | 0.35 |

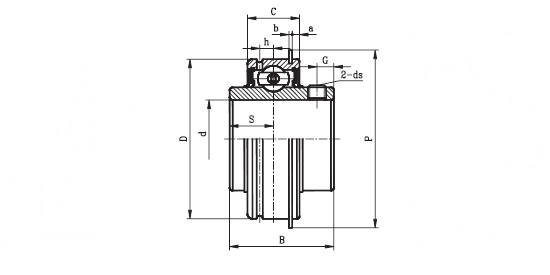

Schematic for 1130 30 C ( ER 206 ) - Bearing Insert with a 30mm bore - TR Brand | |
| a | 3.18mm |
| b | 1.65mm |
| B | 38.1mm |
| C | 22.2mm |
| D | 62mm |
| ds | M6x1 |
| G | 5.5mm |
| h | 5.3mm |
| KG | 0.35 |
| p | 67.7 |
| S | 15.9mm |
