1225 .7/8 ( SB 205 14 ) - BEARING INSERT WITH A .7/8 INCH BORE - TR BRAND
Flat Back 'SB Type' Bearing Insert complete with grub screws to allow tightening against the shaft, from our TR Range. .7/8" ID, 52mm OD, 27mm width. These bearings can also be supplied complete with Housings in our Bearing Units section.
- UnitsPer unit
- 1 - 4£10.78 (£12.94 inc VAT)
- 5 - 9£10.24 (£12.29 inc VAT)
- 10 +£9.70 (£11.64 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1225 .7/8 ( SB 205 14 ) - Bearing Insert with a .7/8 inch bore - TR Brand | |
| Reference | 1225 .7/8 |
| Brand | TR |
| Inside Diameter | .7/8" |
| Outside Diameter | 52mm |
| Width | 15mm |
| Dyn | 14000 |
| Stat | 7880 |
| Type | Grub Screw Lock |
| Weight (KG) | 0.21 |

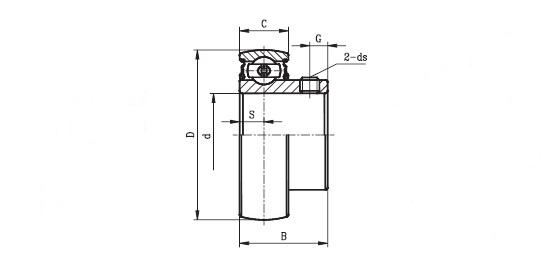

Schematic for 1225 .7/8 ( SB 205 14 ) - Bearing Insert with a .7/8 inch bore - TR Brand | |
| B | 27mm |
| C | 15mm |
| D | 52mm |
| ds | M6x1 |
| G | 5.5mm |
| h | 4.3mm |
| KG | 0.21 |
| S | 7.5mm |
