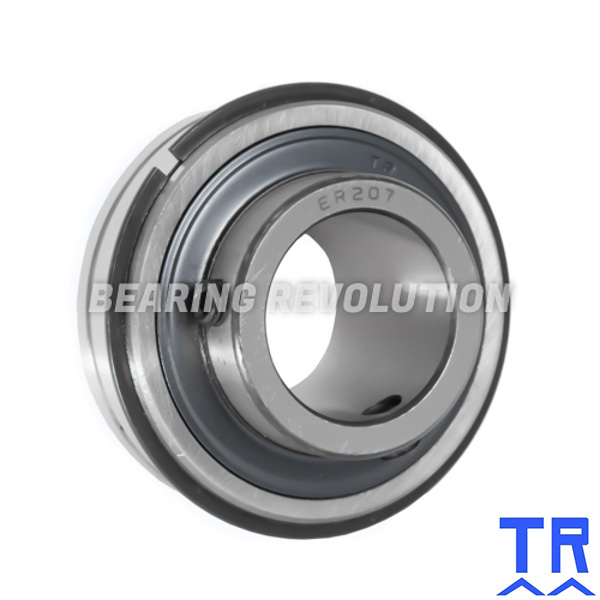

1135 1.1/4 C ( ER 207 20 ) - BEARING INSERT WITH A 1.1/4 INCH BORE - TR BRAND
Full Width Bearing Insert with Parallel Outer and Snap Ring complete with grub screws to allow tightening against the shaft, from our TR Range.1.1/4" ID, 72mm OD, 42.9mm width.
- UnitsPer unit
- 1 - 4£15.94 (£19.13 inc VAT)
- 5 - 9£15.14 (£18.17 inc VAT)
- 10 +£14.35 (£17.22 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1135 1.1/4 C ( ER 207 20 ) - Bearing Insert with a 1.1/4 inch bore - TR Brand | |
| Reference | 1135 1.1/4 C |
| Brand | TR |
| Inside Diameter | 1.1/4" |
| Outside Diameter | 72mm |
| Width | 23.8mm |
| Dyn | 25700 |
| Stat | 15200 |
| Type | Grub Screw Lock |
| Weight (KG) | 0.58 |

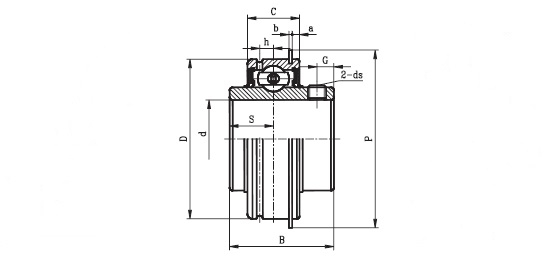

Schematic for 1135 1.1/4 C ( ER 207 20 ) - Bearing Insert with a 1.1/4 inch bore - TR Brand | |
| a | 3.18mm |
| b | 1.65mm |
| B | 42.9mm |
| C | 23.8mm |
| D | 72mm |
| ds | M8x1 |
| G | 6.5mm |
| h | 5.8mm |
| KG | 0.58 |
| p | 78.6 |
| S | 17.5mm |
