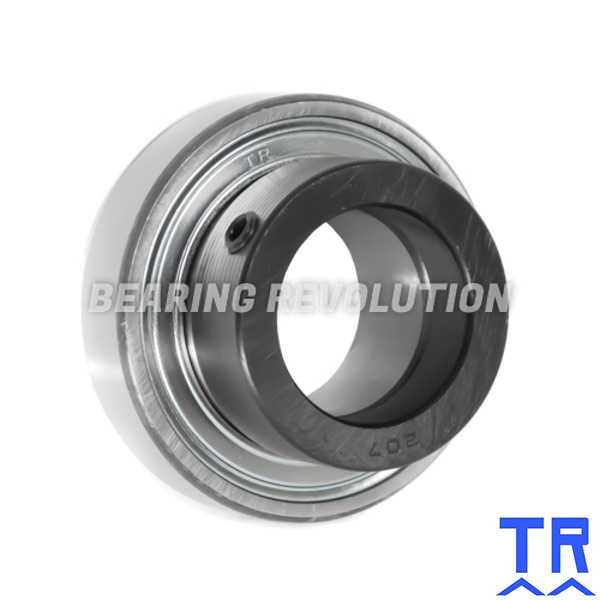

1330 1.1/16 EC ( CSA 206 17 ) - BEARING INSERT WITH A 1.1/16 INCH BORE - TR BRAND

BR Stock No. B-1330 1.1/16 EC | Brand: TR | Mfr. Part No. 1330 1.1/16 EC

Flat Back Bearing Insert with Parallel Outer and Eccentric Collar to allow tightening against the shaft, from our TR Range. 1.1/16" ID, 62mm OD, 23.8mm width.

UnitsPer unit
1 - 4£22.73 (£27.28 inc VAT)
5 - 9£21.60 (£25.92 inc VAT)
10 +£20.46 (£24.55 inc VAT)
Bulk Order PricesENQUIRE

Specifications for 1330 1.1/16 EC ( CSA 206 17 ) - Bearing Insert with a 1.1/16 inch bore - TR Brand
Reference	1330 1.1/16 EC
Brand	TR
Inside Diameter	1.1/16"
Outside Diameter	62mm
Width	16mm
Dyn	19500
Stat	11200
Type	Eccentric Collar Lock
Weight (KG)	0.28

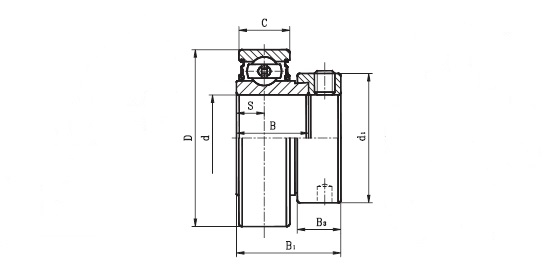

Schematic for 1330 1.1/16 EC ( CSA 206 17 ) - Bearing Insert with a 1.1/16 inch bore - TR Brand
B	23.8mm
B1	35.7mm
B3	15.9mm
C	16mm
D	62mm
d1	44.1mm
h	5mm
KG	0.28
S	9mm
