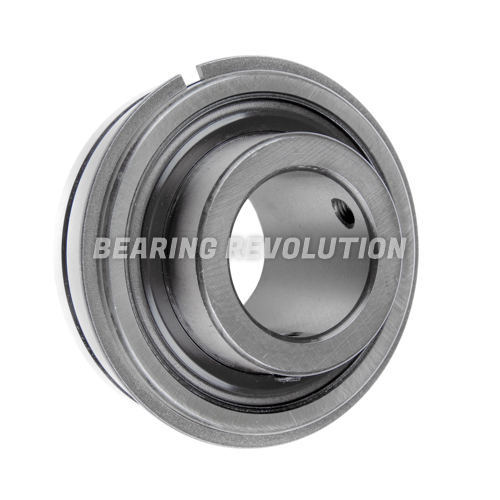

1135 35 C ( ER 207 ) - 'PREMIUM' BEARING INSERT WITH A 35MM BORE.
Full Width Bearing Insert with Parallel Outer and Snap Ring complete with grub screws to allow tightening against the shaft, from our Premium Range. ID 35mm, OD 72mm, width 23.81mm.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£41.48 (£49.78 inc VAT)
- 5 +£39.41 (£47.29 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1135 35 C ( ER 207 ) - 'Premium' Bearing Insert with a 35mm bore. | |
| Reference | 1135 35 C |
| Brand | Premium |
| Inside Diameter | 35mm |
| Outside Diameter | 72mm |
| Width | 23.81mm |
| Type | Grub Screw Lock |
| Weight (KG) | 0.61 |

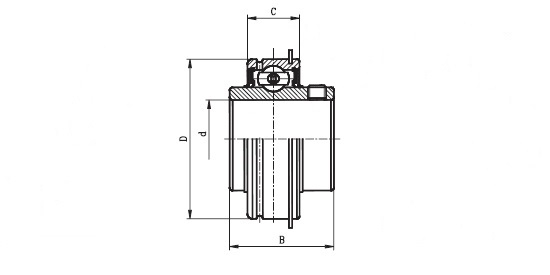

Schematic for 1135 35 C ( ER 207 ) - 'Premium' Bearing Insert with a 35mm bore. | |
| B | 42.88mm |
| C | 23.81mm |
| d | 35mm |
| D | 72mm |
