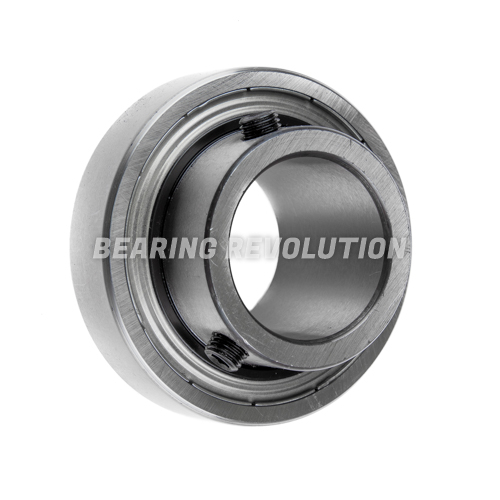

1145 1.1/2 ( RB 209 24 ) - 'PREMIUM' BEARING INSERT WITH A 1.1/2 INCH BORE.
Full Width Bearing Insert with Parallel Outer complete with grub screws to allow tightening against the shaft, from our Premium Range. ID 1.1/2", OD 85mm, width 19mm.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£52.76 (£63.31 inc VAT)
- 5 +£50.14 (£60.17 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1145 1.1/2 ( RB 209 24 ) - 'Premium' Bearing Insert with a 1.1/2 inch bore. | |
Reference | 1145 1.1/2 |
Brand | Premium |
Inside Diameter | 1.1/2" |
Outside Diameter | 85mm |
Width | 19mm |
Type | Grub Screw Lock |
Weight (KG) | 0.73 |

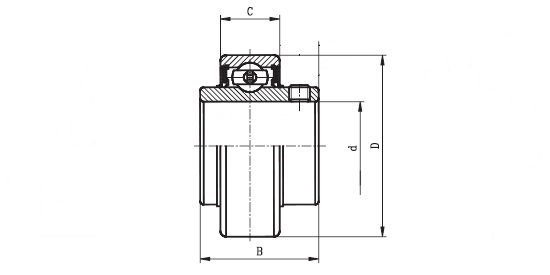

Schematic for 1145 1.1/2 ( RB 209 24 ) - 'Premium' Bearing Insert with a 1.1/2 inch bore. | |
B | 49.23mm |
C | 19mm |
d | 1.1/2" |
D | 85mm |
