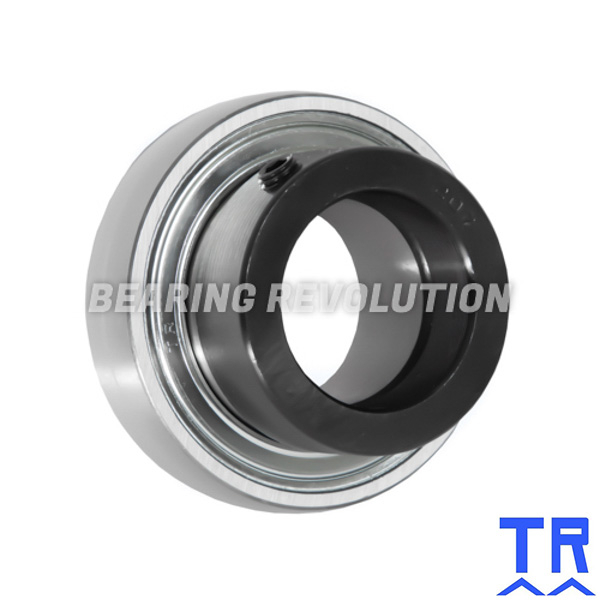

1217 15 EC ( SA 202 ) - BEARING INSERT WITH A 15MM BORE - TR BRAND
Flat Back 'SA Type' Bearing Insert complete with Eccentric Collar to allow tightening against the shaft, from our TR Range. 15mm ID, 40mm OD, 19.1mm width. These bearings can also be supplied complete with Housings in our Bearing Units section.
- UnitsPer unit
- 1 - 4£8.80 (£10.56 inc VAT)
- 5 - 9£8.37 (£10.04 inc VAT)
- 10 +£7.93 (£9.52 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1217 15 EC ( SA 202 ) - Bearing Insert with a 15mm bore - TR Brand | |
| Reference | 1217 15 EC |
| Brand | TR |
| Inside Diameter | 15mm |
| Outside Diameter | 40mm |
| Width | 12mm |
| Dyn | 9550 |
| Stat | 4780 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.12 |

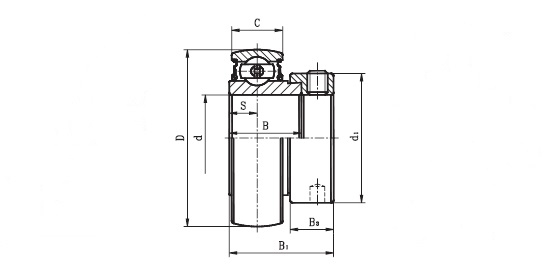

Schematic for 1217 15 EC ( SA 202 ) - Bearing Insert with a 15mm bore - TR Brand | |
| B | 19.1mm |
| B1 | 28.6mm |
| B3 | 13.5mm |
| C | 12mm |
| D | 40mm |
| d1 | 27.2mm |
| h | 3.6mm |
| KG | 0.12 |
| S | 6.5mm |
