ER 211

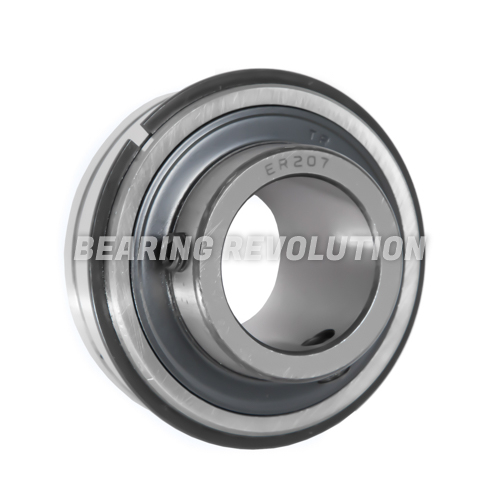

BEARING INSERT WITH A 50MM BORE - TR BRAND
Full Width Bearing Insert with Parallel Outer and Snap Ring complete with grub screws to allow tightening against the shaft, from our TR Range. ID 50mm, OD 100mm, width 30.2mm. These bearings can also be supplied complete with Housings in our Bearing Units section.
Also known as 1155 55 C, 115555C, ER211
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£48.93 (£58.72 inc VAT)
- 5 - 9£46.48 (£55.78 inc VAT)
- 10 +£44.03 (£52.84 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for ER 211 | |
| Reference | 1155 55 C |
| Brand | Budget |
| Inside Diameter | 50mm |
| Outside Diameter | 100mm |
| Width | 30.2mm |
| Dyn | 43550 |
| Stat | 29200 |
| Type | Grub Screw Lock |
| Weight (KG) | 1.16 |

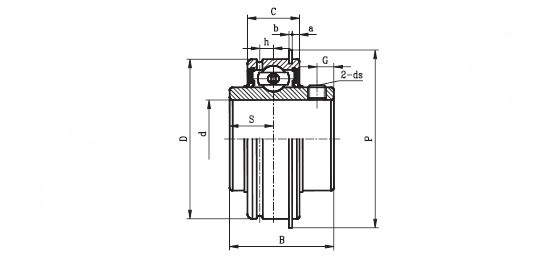

Schematic for ER 211 | |
| a | 3.18mm |
| b | 2.41mm |
| B | 55.6mm |
| C | 30.2mm |
| d | 55mm |
| D | 100mm |
| ds | M10x1.25 |
| G | 9mm |
| h | 7.6mm |
| KG | 1.14 |
| p | 106.5mm |
| S | 22.2mm |
