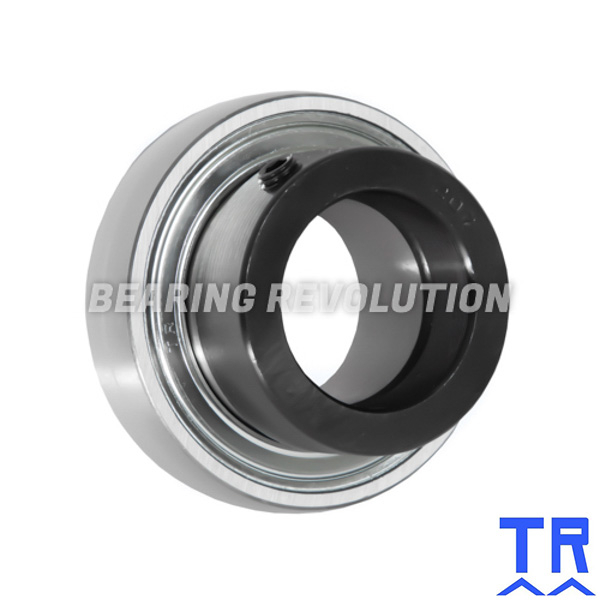

1220 20 EC ( SA 204 ) - BEARING INSERT WITH A 20MM BORE - TR BRAND
Flat Back 'SA Type' Bearing Insert complete with Eccentric Collar to allow tightening against the shaft, from our TR Range. 20mm ID, 47mm OD, 21.4mm width. These bearings can also be supplied complete with Housings in our Bearing Units section.
- UnitsPer unit
- 1 - 4£8.80 (£10.56 inc VAT)
- 5 - 9£8.37 (£10.04 inc VAT)
- 10 +£7.93 (£9.52 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1220 20 EC ( SA 204 ) - Bearing Insert with a 20mm bore - TR Brand | |
| Reference | 1220 20 EC |
| Brand | TR |
| Inside Diameter | 20mm |
| Outside Diameter | 47mm |
| Width | 14mm |
| Dyn | 12800 |
| Stat | 6650 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.16 |

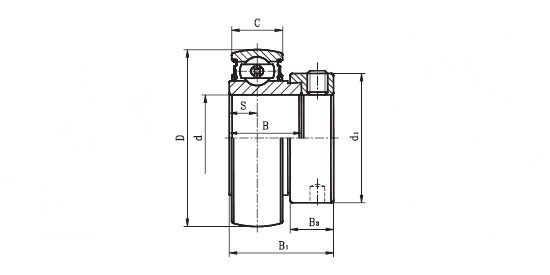

Schematic for 1220 20 EC ( SA 204 ) - Bearing Insert with a 20mm bore - TR Brand | |
| B | 21.4mm |
| B1 | 30.9mm |
| B3 | 13.5mm |
| C | 14mm |
| D | 47mm |
| d1 | 32.4mm |
| h | 4mm |
| KG | 0.16 |
| S | 7.5mm |
