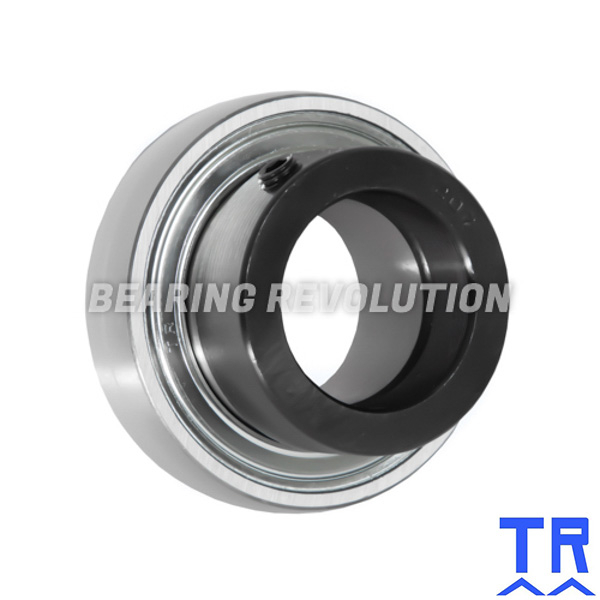

1225 1 EC ( SA 205 16 ) - BEARING INSERT WITH A 1 INCH BORE - TR BRAND
Flat Back 'SA Type' Bearing Insert complete with Eccentric Collar to allow tightening against the shaft, from our TR Range. 1" ID, 52mm OD, 21.4mm width. These bearings can also be supplied complete with Housings in our Bearing Units section.
- UnitsPer unit
- 1 - 4£10.78 (£12.94 inc VAT)
- 5 - 9£10.24 (£12.29 inc VAT)
- 10 +£9.70 (£11.64 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1225 1 EC ( SA 205 16 ) - Bearing Insert with a 1 inch bore - TR Brand | |
| Reference | 1225 1 EC |
| Brand | TR |
| Inside Diameter | 1" |
| Outside Diameter | 52mm |
| Width | 15mm |
| Dyn | 14000 |
| Stat | 7880 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.19 |

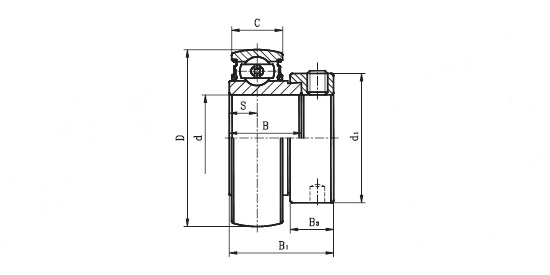

Schematic for 1225 1 EC ( SA 205 16 ) - Bearing Insert with a 1 inch bore - TR Brand | |
| B | 21.4mm |
| B1 | 30.9mm |
| B3 | 13.5mm |
| C | 15mm |
| D | 52mm |
| d1 | 37.4mm |
| h | 4.3mm |
| KG | 0.19 |
| S | 7.5mm |
