1230 1.1/8 EC ( SA 206 18 ) - BEARING INSERT WITH A 1.1/8 INCH BORE - TR BRAND
Flat Back 'SA Type' Bearing Insert complete with Eccentric Collar to allow tightening against the shaft, from our TR Range. 1.1/8" ID, 62mm OD, 23.8mm width. These bearings can also be supplied complete with Housings in our Bearing Units section.
- UnitsPer unit
- 1 - 4£12.57 (£15.08 inc VAT)
- 5 - 9£11.94 (£14.33 inc VAT)
- 10 +£11.31 (£13.57 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1230 1.1/8 EC ( SA 206 18 ) - Bearing Insert with a 1.1/8 inch bore - TR Brand | |
| Reference | 1230 1.1/8 EC |
| Brand | TR |
| Inside Diameter | 1.1/8" |
| Outside Diameter | 62mm |
| Width | 16mm |
| Dyn | 19500 |
| Stat | 11200 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.32 |

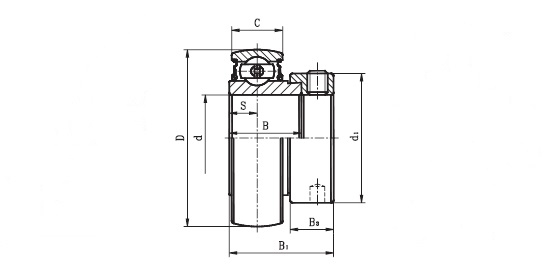

Schematic for 1230 1.1/8 EC ( SA 206 18 ) - Bearing Insert with a 1.1/8 inch bore - TR Brand | |
| B | 23.8mm |
| B1 | 35.7mm |
| B3 | 15.9mm |
| C | 16mm |
| D | 62mm |
| d1 | 44.1mm |
| h | 5mm |
| KG | 0.32 |
| S | 9mm |
