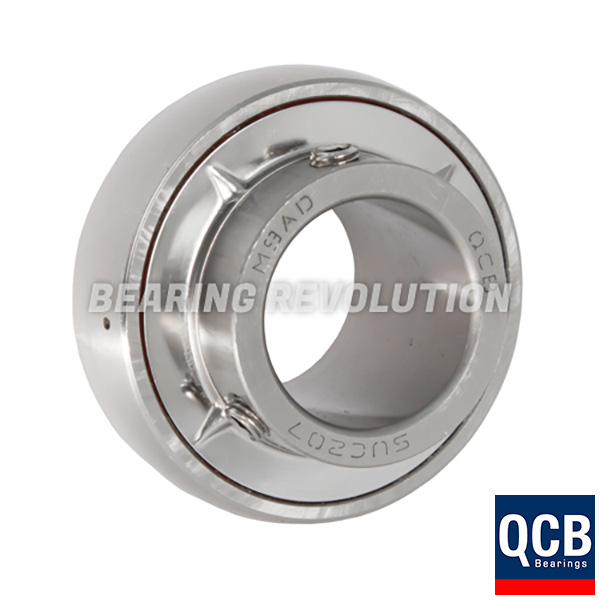

Please note photos are for illustration purposes only

SUC 208 24, STAINLESS STEEL BEARING INSERT WITH A 1.1/2 INCH BORE - SELECT RANGE

Name: SUC 208 24, Stainless Steel Bearing Insert with a 1.1/2 inch bore - Select Range
Brand: Select
Price: 73.33 GBP
Availability: InStock

BR Stock No. S-SUC 208 24 | Brand: Select | Mfr. Part No. SUC 208 24

Full width Stainless Steel Bearing Insert filled with Food Grade Grease from our Select range. These can be used in both our Stainless Steel Units and Thermoplastic Housings. 1.1/2" ID, 80mm OD, 49.2mm width. Also known as

Also known as 1040 1.1/2 S/S 6

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£61.11 (£73.33 inc VAT)
5 - 9£58.05 (£69.66 inc VAT)
10 +£55.00 (£66.00 inc VAT)
Bulk Order PricesENQUIRE

SUC 208 24, Stainless Steel Bearing Insert with a 1.1/2 inch bore - Select Range Schematic

Specifications for SUC 208 24, Stainless Steel Bearing Insert with a 1.1/2 inch bore - Select Range
Reference	SUC 208 24
Brand	Select
Inside Diameter	1.1/2"
Outside Diameter	80mm
Width	49.2mm
Dyn	2300
Stat	1600
Weight (KG)	0.66

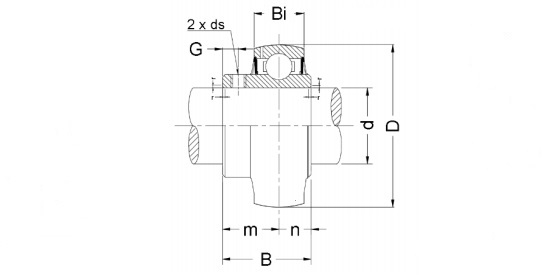

Schematic for SUC 208 24, Stainless Steel Bearing Insert with a 1.1/2 inch bore - Select Range
B	49.2mm
Bi	49.2mm
d	1.1/2"
D	80mm
ds	M8 x 1
G	8mm
KG	0.66
m	30.2mm
n	19mm
r (Min)	2mm
