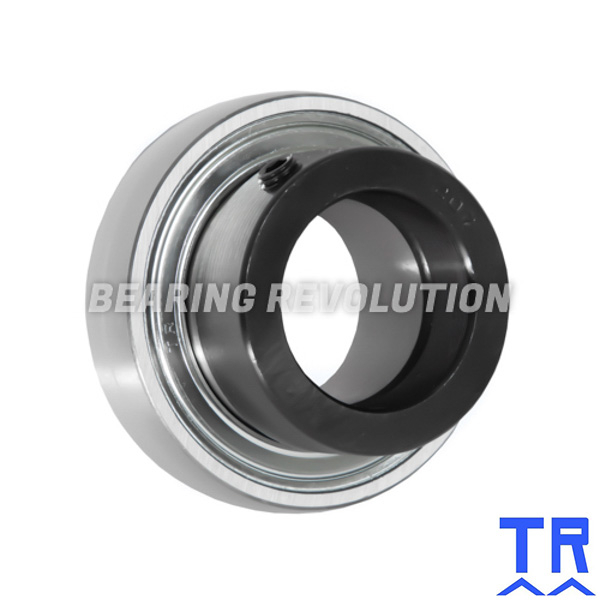

1230 30 EC ( SA 206 ) - BEARING INSERT WITH A 30MM BORE - TR BRAND
Flat Back 'SA Type' Bearing Insert complete with Eccentric Collar to allow tightening against the shaft, from our TR Range. 30mm ID, 62mm OD, 23.8mm width. These bearings can also be supplied complete with Housings in our Bearing Units section.
- UnitsPer unit
- 1 - 4£11.99 (£14.39 inc VAT)
- 5 - 9£11.39 (£13.67 inc VAT)
- 10 +£10.80 (£12.96 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1230 30 EC ( SA 206 ) - Bearing Insert with a 30mm bore - TR Brand | |
| Reference | 1230 30 EC |
| Brand | TR |
| Inside Diameter | 30mm |
| Outside Diameter | 62mm |
| Width | 16mm |
| Dyn | 19500 |
| Stat | 11200 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.3 |

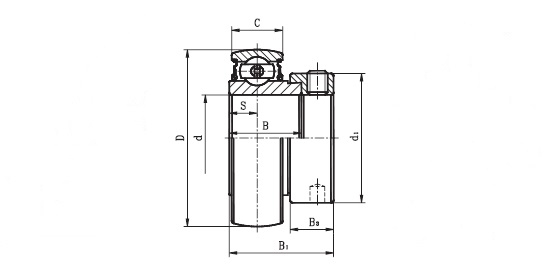

Schematic for 1230 30 EC ( SA 206 ) - Bearing Insert with a 30mm bore - TR Brand | |
| B | 23.8mm |
| B1 | 35.7mm |
| B3 | 15.9mm |
| C | 16mm |
| D | 62mm |
| d1 | 44.1mm |
| h | 5mm |
| KG | 0.3 |
| S | 9mm |
