CSB 204
BEARING INSERT WITH A 20MM BORE - TR BRAND
Flat Back Bearing Insert with Parallel Outer and grub screws to allow tightening against the shaft, from our TR Range. ID 20mm, OD 47mm, width 14mm. These bearings can also be supplied complete with Housings in our Bearing Units section.
Also known as 1320 20, 132020, CSB204
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£12.01 (£14.41 inc VAT)
- 5 - 9£11.41 (£13.69 inc VAT)
- 10 +£10.80 (£12.96 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for CSB 204 | |
| Reference | 1320 20 |
| Brand | Budget |
| Inside Diameter | 20mm |
| Outside Diameter | 47mm |
| Width | 14mm |
| Dyn | 12800 |
| Stat | 6650 |
| Type | Grub Screw Lock |
| Weight (KG) | 0.13 |

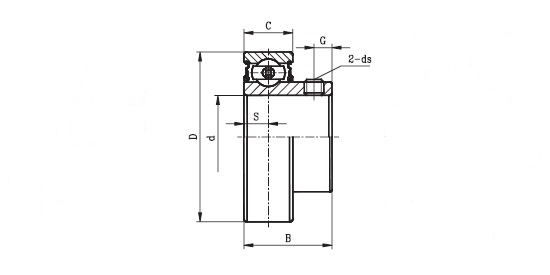

Schematic for CSB 204 | |
| B | 25mm |
| C | 14mm |
| d | 20mm |
| D | 47mm |
| ds | M6x1 |
| G | 5mm |
| h | 4mm |
| KG | 0.13 |
| S | 7mm |
