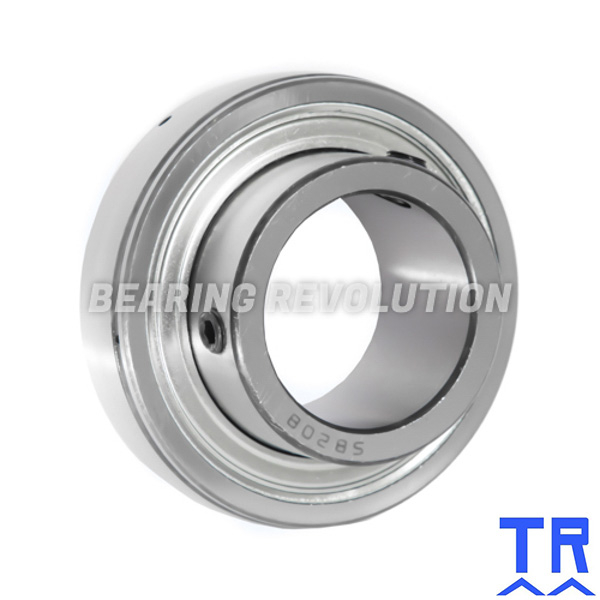

1235 1.1/4 ( SB 207 20 ) - BEARING INSERT WITH A 1.1/4 INCH BORE - TR BRAND
Flat Back 'SB Type' Bearing Insert complete with grub screws to allow tightening against the shaft, from our TR Range. 1.1/4" ID, 72mm OD, 32mm width. These bearings can also be supplied complete with Housings in our Bearing Units section.
- UnitsPer unit
- 1 - 4£14.49 (£17.39 inc VAT)
- 5 - 9£13.77 (£16.52 inc VAT)
- 10 +£13.04 (£15.65 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1235 1.1/4 ( SB 207 20 ) - Bearing Insert with a 1.1/4 inch bore - TR Brand | |
| Reference | 1235 1.1/4 |
| Brand | TR |
| Inside Diameter | 1.1/4" |
| Outside Diameter | 72mm |
| Width | 17mm |
| Dyn | 25700 |
| Stat | 15200 |
| Type | Grub Screw Lock |
| Weight (KG) | 0.51 |

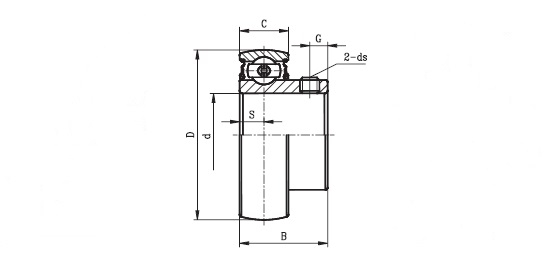

Schematic for 1235 1.1/4 ( SB 207 20 ) - Bearing Insert with a 1.1/4 inch bore - TR Brand | |
| B | 32mm |
| C | 17mm |
| D | 72mm |
| ds | M6x1 |
| G | 6.5mm |
| h | 5.7mm |
| KG | 0.51 |
| S | 8.5mm |
