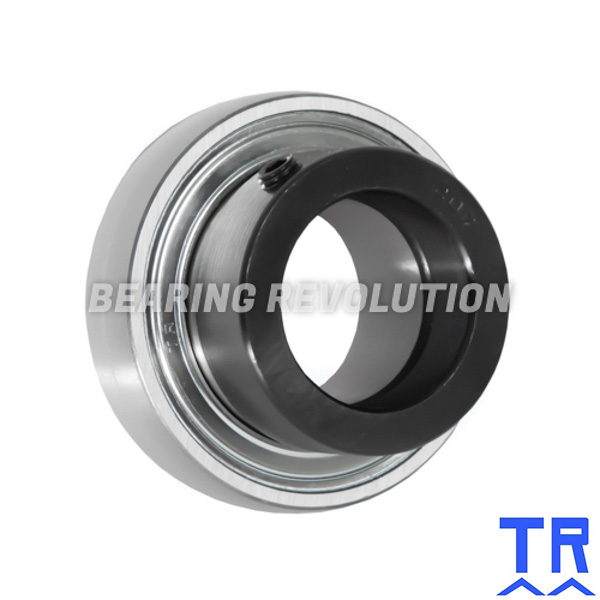

1250 1.15/16 EC ( SA 210 31 ) - BEARING INSERT WITH A 1.15/16 INCH BORE - TR BRAND
Flat Back 'SA Type' Bearing Insert complete with Eccentric Collar to allow tightening against the shaft, from our TR Range. 1.15/16" ID, 90mm OD, 30.2mm width. These bearings can also be supplied complete with Housings in our Bearing Units section.
- UnitsPer unit
- 1 - 4£23.00 (£27.60 inc VAT)
- 5 - 9£21.84 (£26.21 inc VAT)
- 10 +£20.70 (£24.84 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1250 1.15/16 EC ( SA 210 31 ) - Bearing Insert with a 1.15/16 inch bore - TR Brand | |
| Reference | 1250 1.15/16 EC |
| Brand | TR |
| Inside Diameter | 1.15/16" |
| Outside Diameter | 90mm |
| Width | 20mm |
| Dyn | 35100 |
| Stat | 23200 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.72 |

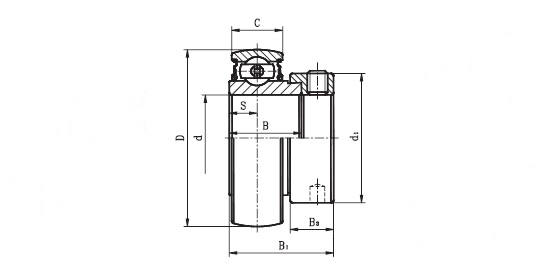

Schematic for 1250 1.15/16 EC ( SA 210 31 ) - Bearing Insert with a 1.15/16 inch bore - TR Brand | |
| B | 30.2mm |
| B1 | 43.7mm |
| B3 | 18.3mm |
| C | 20mm |
| D | 90mm |
| d1 | 67.2mm |
| h | 6.5mm |
| KG | 0.72 |
| S | 11mm |
