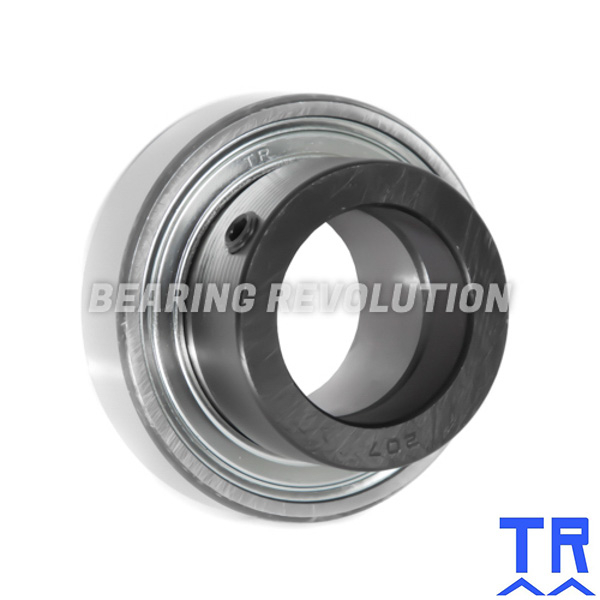

Please note photos are for illustration purposes only

1317 .5/8 EC ( CSA 202 10 ) - BEARING INSERT WITH A .5/8 INCH BORE - TR BRAND

BR Stock No. B-1317 .5/8 EC | Brand: TR | Mfr. Part No. 1317 .5/8 EC

Flat Back Bearing Insert with Parallel Outer and Eccentric Collar to allow tightening against the shaft, from our TR Range. .5/8" ID, 40mm OD, 19.1mm width.

UnitsPer unit
1 - 4£9.24 (£11.09 inc VAT)
5 - 9£8.79 (£10.55 inc VAT)
10 +£8.31 (£9.97 inc VAT)
Bulk Order PricesENQUIRE

Specifications for 1317 .5/8 EC ( CSA 202 10 ) - Bearing Insert with a .5/8 inch bore - TR Brand
Reference	1317 .5/8 EC
Brand	TR
Inside Diameter	.5/8"
Outside Diameter	40mm
Width	12mm
Dyn	9550
Stat	4780
Type	Eccentric Collar Lock
Weight (KG)	0.11

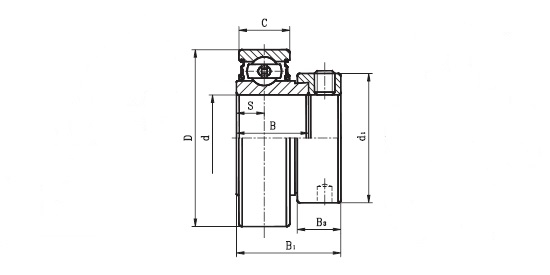

Schematic for 1317 .5/8 EC ( CSA 202 10 ) - Bearing Insert with a .5/8 inch bore - TR Brand
B	19.1mm
B1	28.6mm
B3	13.5mm
C	12mm
D	40mm
d1	27.2mm
h	3.6mm
KG	0.11
S	6.5mm
