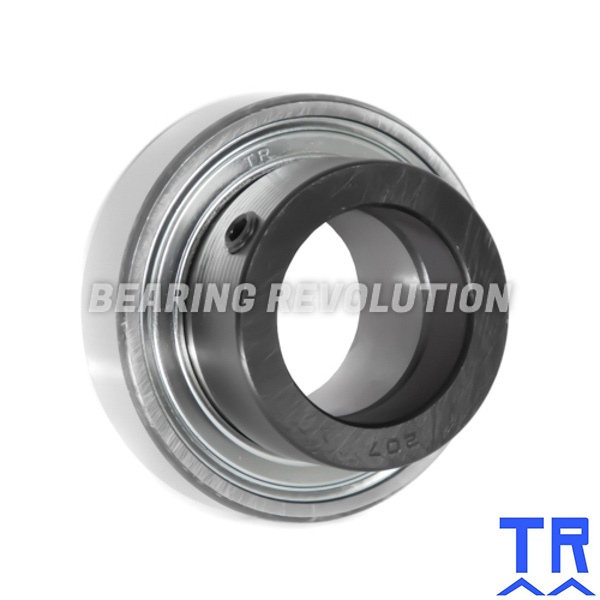

1325 1 EC ( CSA 205 16 ) - BEARING INSERT WITH A 1 INCH BORE - TR BRAND
Flat Back Bearing Insert with Parallel Outer and Eccentric Collar to allow tightening against the shaft, from our TR Range. 1" ID, 52mm OD, 21.4mm width.
- UnitsPer unit
- 1 - 4£10.78 (£12.94 inc VAT)
- 5 - 9£10.24 (£12.29 inc VAT)
- 10 +£9.70 (£11.64 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1325 1 EC ( CSA 205 16 ) - Bearing Insert with a 1 inch bore - TR Brand | |
| Reference | 1325 1 EC |
| Brand | TR |
| Inside Diameter | 1" |
| Outside Diameter | 52mm |
| Width | 15mm |
| Dyn | 14000 |
| Stat | 7880 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.19 |

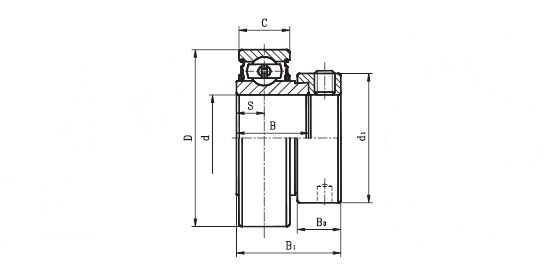

Schematic for 1325 1 EC ( CSA 205 16 ) - Bearing Insert with a 1 inch bore - TR Brand | |
| B | 21.4mm |
| B1 | 30.9mm |
| B3 | 13.5mm |
| C | 15mm |
| D | 52mm |
| d1 | 37.4mm |
| h | 4.3mm |
| KG | 0.19 |
| S | 7.5mm |
