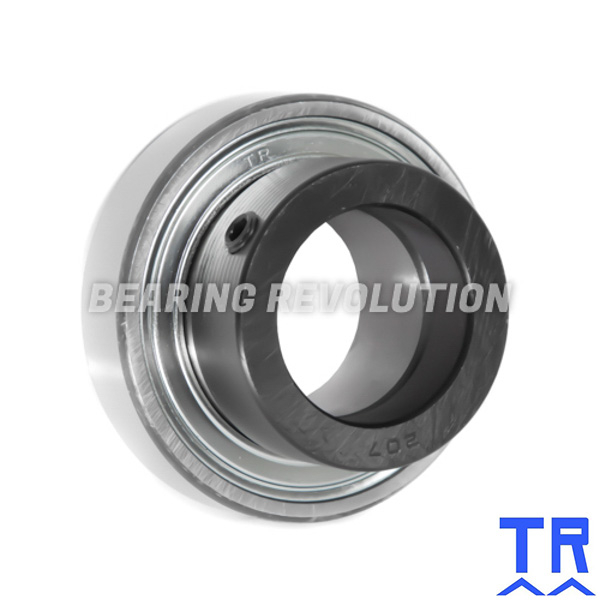

1320 .3/4 EC ( CSA 204 12 ) - BEARING INSERT WITH A .3/4 INCH BORE - TR BRAND
Flat Back Bearing Insert with Parallel Outer and Eccentric Collar to allow tightening against the shaft, from our TR Range. .3/4" ID, 47mm OD, 21.4mm width.
- UnitsPer unit
- 1 - 4£9.24 (£11.09 inc VAT)
- 5 - 9£8.79 (£10.55 inc VAT)
- 10 +£8.31 (£9.97 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1320 .3/4 EC ( CSA 204 12 ) - Bearing Insert with a .3/4 inch bore - TR Brand | |
| Reference | 1320 .3/4 EC |
| Brand | TR |
| Inside Diameter | .3/4" |
| Outside Diameter | 47mm |
| Width | 14mm |
| Dyn | 12800 |
| Stat | 6650 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.17 |

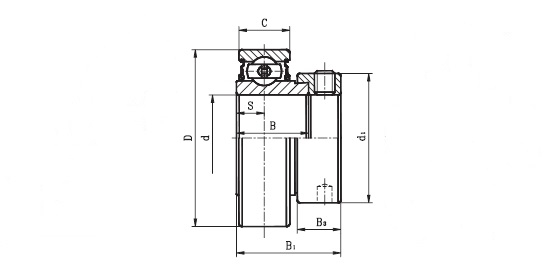

Schematic for 1320 .3/4 EC ( CSA 204 12 ) - Bearing Insert with a .3/4 inch bore - TR Brand | |
| B | 21.4mm |
| B1 | 30.9mm |
| B3 | 13.5mm |
| C | 14mm |
| D | 47mm |
| d1 | 32.4mm |
| h | 4mm |
| KG | 0.17 |
| S | 7.5mm |
