1335 35 EC ( CSA 207 ) - BEARING INSERT WITH A 35MM BORE - TR BRAND
Flat Back Bearing Insert with Parallel Outer and Eccentric Collar to allow tightening against the shaft, from our TR Range. 35mm ID, 72mm OD, 25.4mm width.
- UnitsPer unit
- 1 - 4£14.49 (£17.39 inc VAT)
- 5 - 9£13.77 (£16.52 inc VAT)
- 10 +£13.04 (£15.65 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1335 35 EC ( CSA 207 ) - Bearing Insert with a 35mm bore - TR Brand | |
Reference | 1335 35 EC |
Brand | TR |
Inside Diameter | 35mm |
Outside Diameter | 72mm |
Width | 17mm |
Dyn | 25700 |
Stat | 15200 |
Type | Eccentric Collar Lock |
Weight (KG) | 0.45 |

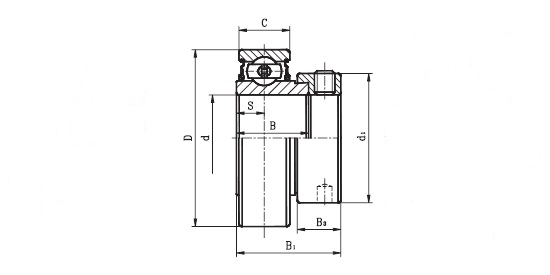

Schematic for 1335 35 EC ( CSA 207 ) - Bearing Insert with a 35mm bore - TR Brand | |
B | 25.4mm |
B1 | 38.9mm |
B3 | 17.5mm |
C | 17mm |
D | 72mm |
d1 | 51.1mm |
h | 5.7mm |
KG | 0.45 |
S | 9.5mm |
