10752.7/8

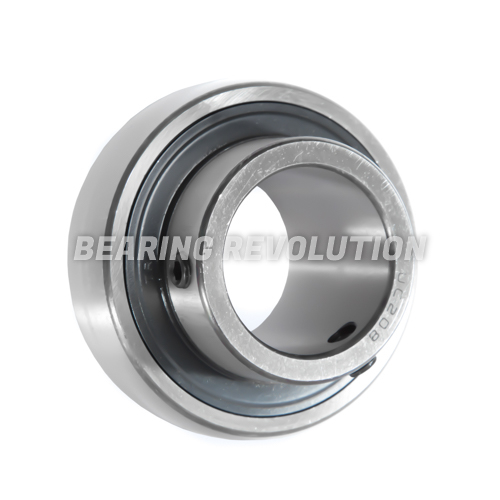

BEARING INSERT WITH A 2.7/8 INCH BORE - TR BRAND
Full Width 'UC type' Bearing Insert complete with grub screws to allow tightening against the shaft, from our TR Range. ID 2.7/8", OD 130mm, width 30mm. These bearings can also be supplied complete with Housings in our Bearing Units section.
Also known as 1075 2.7/8
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£135.49 (£162.59 inc VAT)
- 5 - 9£128.71 (£154.45 inc VAT)
- 10 +£121.94 (£146.33 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 10752.7/8 | |
| Reference | 1075 2.7/8 |
| Brand | Budget |
| Inside Diameter | 2.7/8" |
| Outside Diameter | 130mm |
| Width | 30mm |
| Dyn | 66000 |
| Stat | 49500 |
| Type | Grub Screw Lock |
| Weight (KG) | 2.54 |

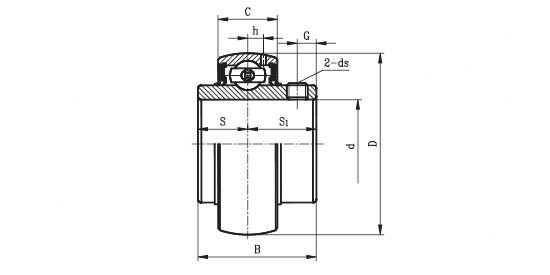

Schematic for 10752.7/8 | |
| B | 77.8mm |
| C | 30mm |
| d | 2.7/8" |
| D | 130mm |
| ds | M12x1.25 |
| G | 12mm |
| h | 9mm |
| KG | 2.54 |
| S | 33.3mm |
| S1 | 44.5mm |
