16B-3 09 Pilot-Bore Sprocket
Please note photos are for illustration purposes only
How To Measure A Bearing

16B-3 09 PILOT-BORE SPROCKET

BR Stock No. U-16B-3 09 | Brand: BR | Mfr. Part No. 16B-3 09

16B-3 09 Pilot-Bore Sprocket to suit 16B-3 chain.

Also known as PT12009, 8 TR 09

  • UnitsPer unit
  • 1+£47.04 (£56.45 inc VAT)
  • Bulk Order PricesENQUIRE
Qty:
£47.04 ex VAT
Trade Account
16B-3 09 Pilot-Bore Sprocket Schematic

Specifications for 16B-3 09 Pilot-Bore Sprocket

Reference16B-3 09
BrandBR
MaterialSteel
Number of Teeth9
Pitch (P) Inch1" (25.4mm)
Pitch (P) mm25.4mm
TypeTriplex
Weight (KG)1.83

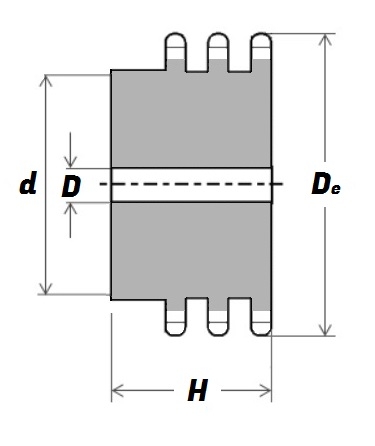

Schematic for 16B-3 09 Pilot-Bore Sprocket

d50mm
D20mm
De85mm
H95mm
